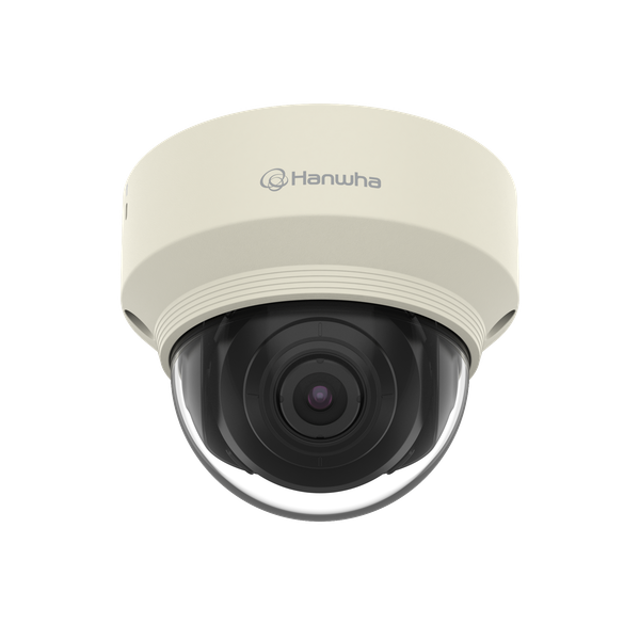

Hanwha Vision Network Camera XNV-6013M

Drilling and Securing the Camera

Attach the template and drill holes following the template.

Secure the camera to the holes using the provided tapping screws.

Turn the screws on both sides of the camera lens cover counterclockwise to loosen them.

Adjust the lens in the desired direction by referring to the 'Adjusting the monitoring direction for the camera' section (page 13).

After adjusting the angle, turn the screws clockwise to fix the lens angle.

Moisture Absorber Installation (Only for XNV-6013M)

Remove the packaging for the moisture absorber provided as an accessory.

Adjusting the Monitoring Direction

Set the long mark in the center of the lens to the exact position

Adjust the Pan angle after installing the camera considering the direction to be monitored

Set the horizontal angle so that the image is not reversed

Adjust the tilt angle so that the camera faces toward the monitoring object

Use the supplied star-shaped wrench to loosen the screws by turning them counterclockwise

Ensure screws are not completely loosened
