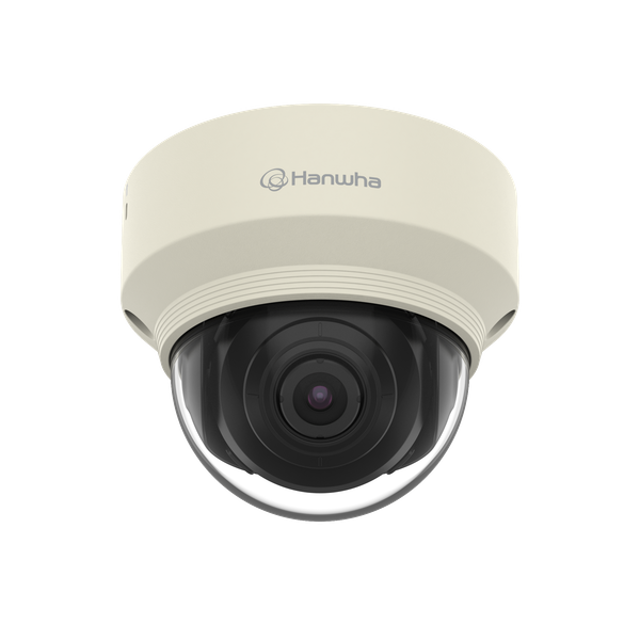

Hanwha Vision Network Camera XNV-6022RM
Create an account to install this asset package.
Maintenance Plans for Hanwha Vision Network Camera Model XNV-6022RM
Integrate maintenance plans directly into your work orders in MaintainX.
Camera Disassembling
Dome Cover Removal
Loosen the screws by turning them counterclockwise using the supplied star-shaped wrench
Remove the dome cover
Camera Adjustment
Adjusting the Monitoring Direction
Set the Pan angle
Set the Rotate angle
Set the Tilt angle
Is the camera angle within the specified range?
Methods of Adjustment
Adjust the Pan angle after installing the camera
Set the horizontal angle to avoid image reversal
Adjust the tilt angle towards the monitoring object
Camera Assembling
Drilling and Securing the Camera
Attach the template and drill holes following the template.
Secure the camera using the provided tapping screws.
Adjusting the Camera Lens
Loosen the screws on both sides of the camera lens cover by turning them counterclockwise.
Adjust the lens in the desired direction by referring to the manual.
Fix the lens angle by turning the screws clockwise.
Moisture Absorber Installation (Only for XNV-6013M)
Remove the packaging for the moisture absorber.
