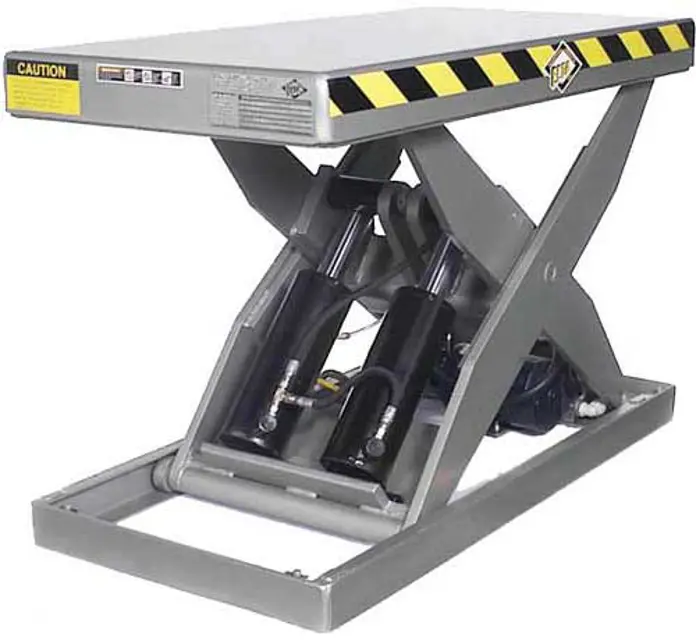

Presto ECOA Lifts Scissor Lift Layback XL4-025-36-36496

WARNING! Never go under or service lift with a load on the table or with the scissor mechanism unblocked. Always service the lift in a down position.

All servicing should be done by qualified personnel. Qualified personnel should be able to read and understand wiring and hydraulic diagrams.

DANGER! The lift may use a power supply of up to 575 Volts AC. This voltage can kill. Do not work with the electrical parts unless you are a qualified electrician!

WARNING! As the lift moves up and down, 'pinch points' are formed. Keep hands, feet, and loose clothing away from these pinch points.

WARNING! A falling lift can cause severe personal injury. Before working under the lift remove any load from the platform, raise the lift and insert the maintenance devices.

WARNING! Release of fluids under high pressure can cause personal injury. Before you open any part of the hydraulic system, be sure to release the hydraulic pressure.

CAUTION! The warning labels on the lift are there for the safety of the operators. If the labels are worn or missing, or have been painted over, replace them before releasing the lift for operation.

WARNING! If you are going to repair the center pivot pins and bushings, you must support the lift table in a special way.

NOTICE It is important to use hydraulic fluid with the correct grade and properties. See the hydraulic oil specification in this manual, Table 1.

Visual inspection of the entire lift

Check the hydraulic tank and the hydraulic lines

Clean and lubricate all pivot points

Inspect for worn or broken parts

Upload a photo of the worn or broken parts

Replace the hydraulic oil and filter

Sign off on the 90000 Cycles Lifts Maintenance

Apply a light oil or PTFE lubricant to non-greased pivot points or rollers

Check the appearance of the hydraulic fluid

Check all the hydraulic fittings and hoses

Check limit switch if applicable

Sign off on the monthly lifts maintenance

Check all the hydraulic fittings and hoses

Describe any issues found with the hydraulic fittings and hoses

Inspect cylinder return line and rod

Describe any issues found with the cylinder return line and rod

Disassemble the down valve. Blow the plunger clean with compressed air. Reassemble and install.

Change oil in reservoir, clean the suction screen and vent cap. Replace pressure line or return line filter element.

Make all weekly, and monthly checks, check all electrical connections.

NOTE: If bushings at the main pivot points are neglected and allowed to oblong, major structural problems will develop and extensive repairs will be needed.

Sign off on the 500 Hourly / 6 Monthly Lifts Maintenance

Visual inspection of the entire lift

Upload a photo of worn or broken parts

Sign off on the lift maintenance
