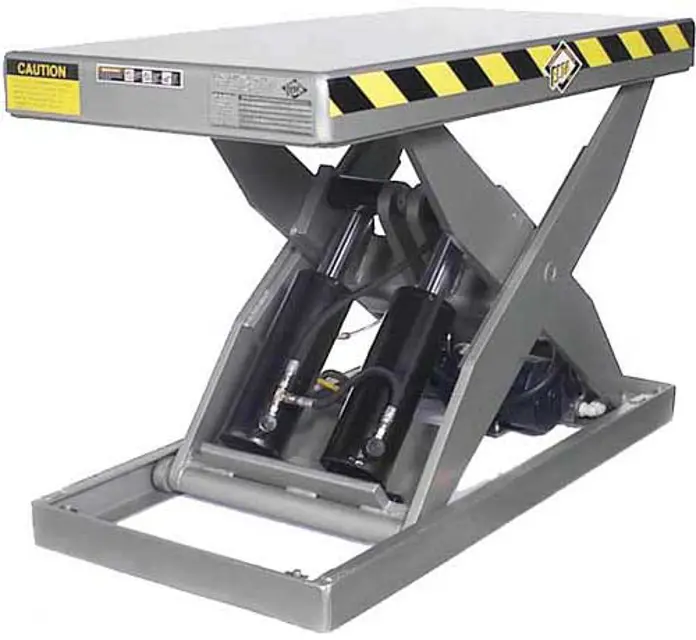

Presto ECOA Lifts Scissor Lift Layback XL2-025-36-32484

Check all the hydraulic fittings and hoses

Inspect cylinder return line and rod

Appearance of considerable fluid in the vent lines indicates a need to repack the cylinder.

Blow the plunger clean with compressed air

Reassemble and install the down valve

Clean the suction screen and vent cap

Apply a light oil or PTFE lubricant to non-greased pivot points or rollers

Check the appearance of the hydraulic fluid

Check all the hydraulic fittings and hoses

Check limit switch if applicable

Sign off on the monthly lifts maintenance

Visual inspection of the entire lift

Motor starter contacts and limitswitches check

Clean and lubricate all pivot points

Inspect for worn or broken parts, and replace as necessary

NOTE: If lubrication points will not take grease, ensure that the load has been removed from the platform, and ensure the grease fittings are not plugged and will take grease, or the weight of the lift may need to be removed from the greaseable joint.

A fork truck or overhead crane may be necessary to remove any weight off of the greaseable joints. Contact Presto/ECOA Service Department for further instructions if the machine is still unable to accept grease.

Sign off on the 30000 Cycles Lifts Maintenance

Visual inspection of the entire lift

Check the hydraulic tank and the hydraulic lines

Clean and lubricate all pivot points

Inspect for worn or broken parts

Upload a photo of the replaced parts

Replace the hydraulic oil and filter

Sign off on the 90000 cycles lifts maintenance

Inspect center pivot pins and bushings

Inspect leg hinge pins and bushings for evidence of wear, loose bolts or broken cotter pins or keepers

Sign off on the lifts maintenance
