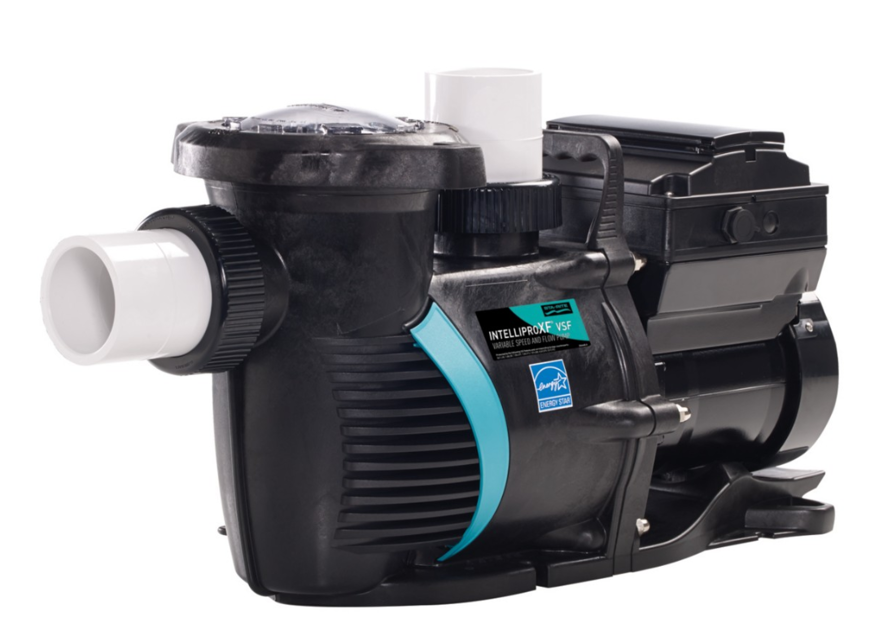

Pentair Water Treatment Equipment INTELLIPROXF

Press Start/Stop button on the pump and turn off the pump at the circuit breaker.

Disconnect communication cable from pump.

Relieve pressure in the system.

Turn the lid and clamp counter-clockwise and remove from the pump.

Remove debris and rinse out the basket. Replace the basket if it is cracked.

Put the basket back into the housing, aligning the notch in the bottom of the basket with the rib in the bottom of the volute.

Turn off the pump circuit breaker at the main panel

Drain the pump by removing the drain plugs

Disconnect the RS-485 communication cable from the pump (if connected to pump)

Disconnect supply power in the field wiring compartment

Switch OFF power to motor before working on pump or motor

Ensure the four tamper proof screws are not removed from the motor assembly

Drive and Control Panel Removal

Are all electrical breakers and switches turned off before removing the drive?

Disconnect the RS-485 communication cable from the pump

Remove the three Phillips head screws securing the drive to the motor assembly

Lift up the drive assembly and remove it from the motor adapter located on top of the motor assembly

Install the spring end of the mechanical seal onto the impeller shaft with black/carbon face facing outward.

Remount the seal plate to the motor using the four lock washers and four nuts.

Press the seal into the seal plate with white ceramic face facing outward and wipe off the ceramic with a clean cloth.

Impeller and Cover Installation

Hand tighten impeller onto the motor shaft.

Screw in the impeller reverse lock screw (counterclockwise to tighten).

Install the rear plastic cover on the back of the motor.
