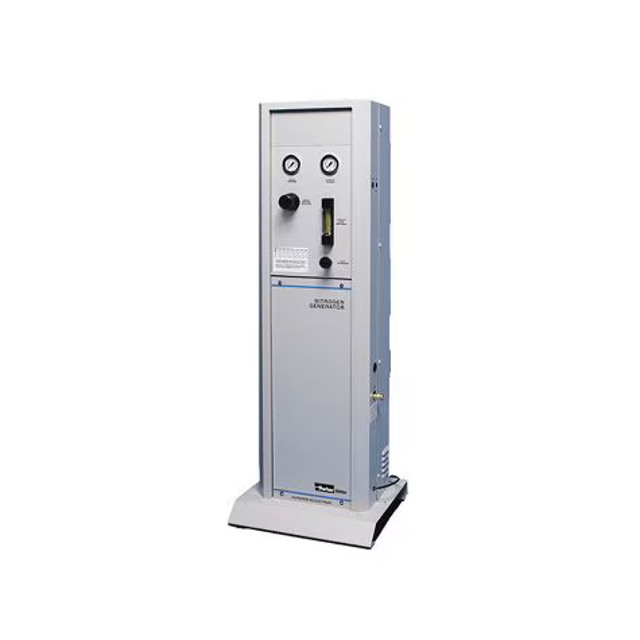

Parker Hannifin Nitrogen Generator N2-35

Are the readings same as original settings?

If readings have changed, follow the Adjustment Procedure

Was the oxygen analyzer calibrated?

Describe the calibration procedure followed

Sign off on the nitrogen generator check

Warning: Only trained personnel should perform this procedure.

Enter the name of the technician performing the procedure

7/16” (or adjustable) wrench or socket wrench available

Tubing disconnected from the press fittings on the inlet and outlet ports of the scrubber

4 bolts that hold the scrubber to the generator chassis removed

New scrubber replaced and re-assembled

Warning: Ensure the system is depressurized before starting the procedure

Filter cartridges removed from the filter housings

Housing reassembled in reverse order

Proper grade filter installed in the proper housing

Sign off on the filter cartridge replacement

Warning: The product is not intended for use in extremely dirty environments.

Is the environment clean enough for the product?

If necessary, the Parker Balston Nitrogen Generator may be wiped clean with a dry cloth on an as needed basis.

Upload a photo of the cleaned generator

Do not use water, aerosols, or other cleaning agents to clean the unit.

Did you use any prohibited cleaning agents?

Use of any liquid detergent to clean the generator could present an electrical hazard.

Sign off on the cleaning procedure
