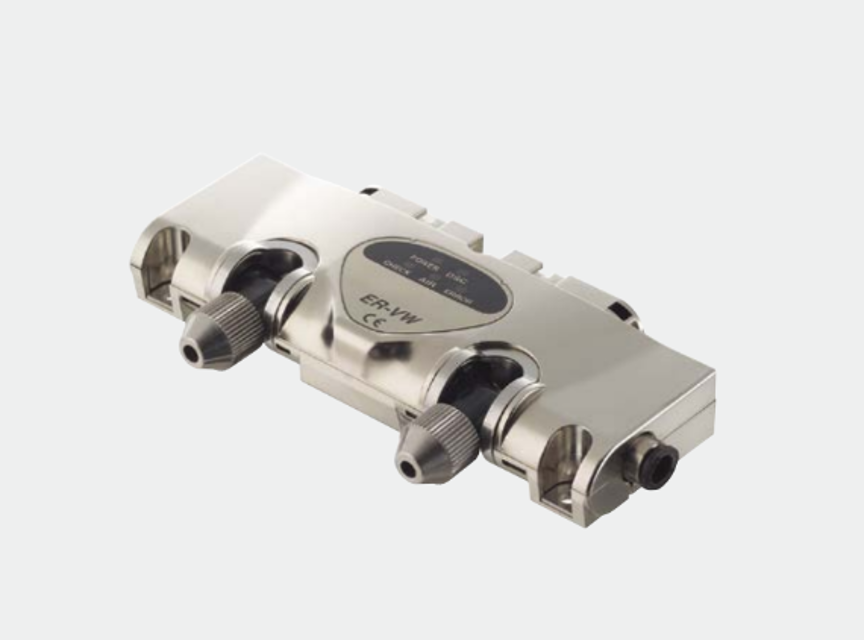

Panasonic Thin Type Ionizer ER-VW

1 Check that the power is turned off.

2 Check that no air is being supplied.

3 Turn the nozzle counterclockwise to remove it.

4 Replace the discharge needle unit, or use a cotton swab moistened in alcohol to clean the discharge needle and the area around it.

For the needle discharge unit while running it along the guide at the side of the opening.

5 After cleaning, turn the nozzle clockwise to install it. Securely tighten the nozzle by hand until it is touching the enclosure, and check that the nozzle does not move. If the nozzle is not installed correctly, it will adversely affect charge removal performance and the nozzle may also fall out.;

- Since the removal discharge effect will deteriorate if dirt is stuck to the tip of the discharge needle, clean the discharge needle periodically.

- The maintenance required depends on the environment of use. As a reference, the maintenance should be done once in two weeks.

- The discharge needle is a part having a product life time. It is recommended that the needle should be replaced, as a reference, after 10,000 hours in use. When replacing it, replace the whole unit (ER-WWANT).;
