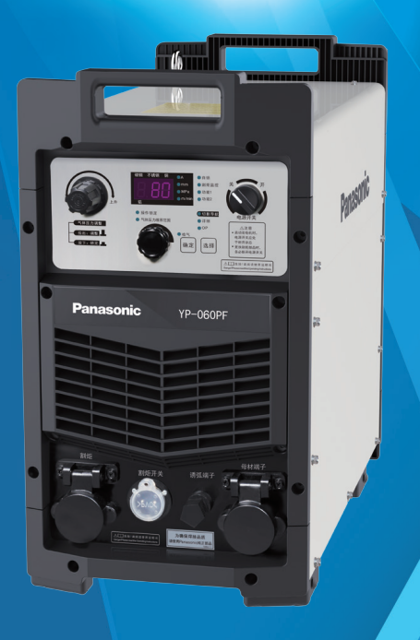

Panasonic IGBT Controlled Plasma Arc Cutting Power Source YP-060PF

While details for checking are shown below table, consider any additional check items according to your conditions of use.

If there is a mass of dust and amount of contaminant which can pose great impact on the performance of the Product, please adjust the frequency according to the inspection results.

· the cleaning of drain valve and parts of the air filter;

· Daily checks are not enough to keep the proper performance of this product for a long time. Perform the periodic check without fail. It is important to keep the proper performance of this product for a long time.

· In the periodic check, after cutting off power source check the product thoroughly including checking and cleaning of the inside of this product.

· Except the cleanness of water filter, conduct the periodic check every 6 months normally. If there is a mass of fine dust, oily smoke, etc. Around this product, perform the regular check every month as a guideline).

· Please record the executed date of the inspection and cleanness on the data plate (Fig. 1) on the right side of the power source.

Please periodically execute (every 3 ~ 6 months) inspection and cleanness inside the cutting machine.(year/month/date)

(For detailed inspection contents, please refer to the operational manual of the product.);

1) Clean the parts which directly contact with cooling air

(1) Remove left side panel of the cutting machine and middle frame mounted with front panel.

(2) Eliminate dust and foreign matter which cannot easily blow out.

(3) Blow off internally-accumulated dirt and dust and foreign matter by compressed air without moisture included (dry air).

After maintenance, please be sure to restore machine case and bolts etc.

2) Clean the parts which do not directly contact with cooling air

(1) Remove right side panel and top cover.

(2) Blow off internally-accumulated dirt and dust and foreign matter by compressed air without moisture included (dry air).

• Perform the daily check without fail. It is important to make the most of the performance of this product and to secure the safety of daily operations.

• Check the items indicated in the “Table 1” and “Table 2”, and conduct the cleaning and replacement of parts if necessary.

• For replacement of parts, make sure to use our genuine parts for Panasonic air plasma cutting torch to keep its performance and functions

12.1.1 The cutting machine (the Product)

Operation, switching sense and loose attachment.

• LED is lit and goes off reliably.

The withstand voltage test and the insulation resistance measurement shall be performed by service engineers specified by Panasonic representatives, or educated and/or skilled persons who well understand and/or who are familiar with cutters and electricity. Performing the withstand voltage test and the insulation resistance measurement carelessly may damage this unit as the unit is equipped with semiconductor parts including transistors.

●The matters need attention for sales and service distributor

Before executing insulation withstand voltage and insulation resistance test, you are requested to execute below mentioned preparation and prepare jumper cables (cross section 1.25 mm2 approx.) With a clip to short-circuit each device.

Remove input power source cable of the distribution box, connection terminal of short circuit cable.

Output terminal of cutting machine

Remove cable connecting the output terminal of the cutting main circuit exceptant

Use a wire to short circuit across the output terminals.
