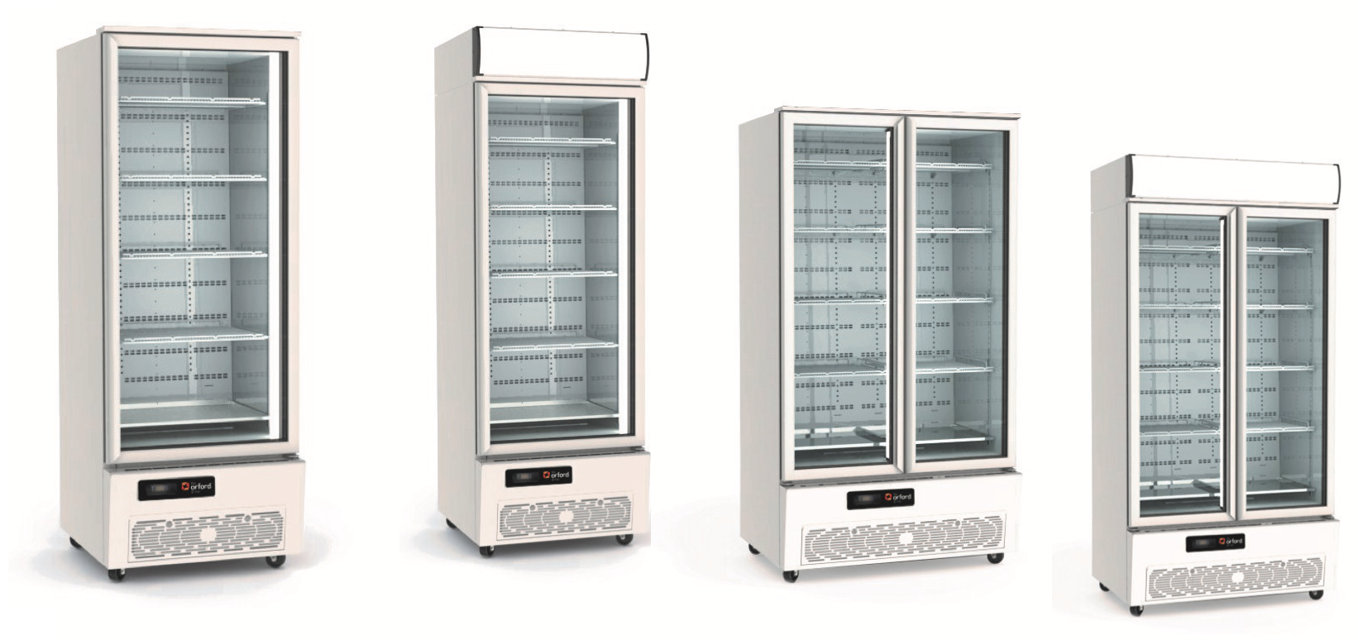

Orford Refrigeration Refrigerator EB45R-Sn-B

Isolate power before removing any covers for maintenance

Wash door gaskets with mild soap and water

Rinse door gaskets with fresh water

Are the door gaskets clean and free of soap residue?

Isolate power before removing any covers for maintenance

Pull grill forward using the finger holes provided

Brush or vacuum dust and dirt off the filter

Wash the filter with clean water

Is detergent and warm water required to clear grease build up?

Shake and wipe filter so it is drip dry

Remove the plastic light diffuser

Insert a screwdriver into the gap at the top and lift the diffuser

Slide the diffuser out of the mullion

Isolate Power before removing any covers for Maintenance

Ensure no abrasive pads are used to clean cabinet finish inside or out

Check that the cabinet is clean and free of debris

Isolate power Refer To Isolate Power

Remove the plastic light diffuser by inserting a screwdriver at the top, lifting the diffuser, and sliding it out.

Rotate the LED tube 90º and slide out to remove.

Reverse the removal process to install the new LED tube.

Ensure correct positioning of LED tube

Rotate tube to shine the light across the door opening as shown.
