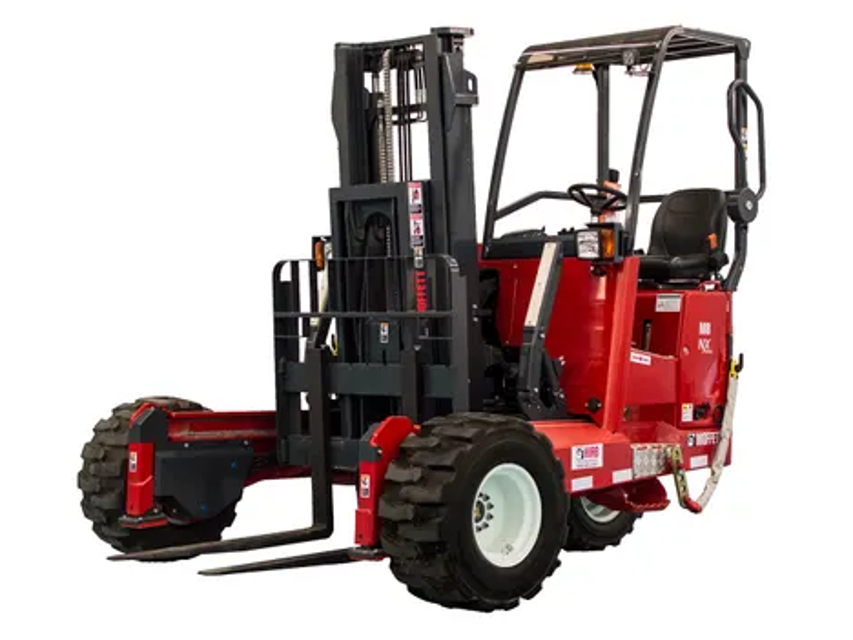

Moffett Truck Mounted Forklift M8

Check the engine oil level and add oil if required.

Check the hydraulic oil level sight glass.

Check the fuel level and top up if necessary.

Check the engine coolant level on the expansion bottle.

Stroke all cylinders fully in and out and check for leaks.

Check all lubrication and grease points as per the grease point charts.

Water Presence Sensor Disconnection

Disconnect the water presence sensor cable

Remove the water presence sensor from its cartridge

Lubricate the new cartridge gasket

Tighten the new empty cartridge on the diesel fuel filter support

Tighten the water presence sensor on to the new cartridge

Water Presence Sensor Reconnection

Check the mounting kit and chain hanger brackets for cracks and bends.

Tie Downs Inspection (Dump Bed Mounting Kit Only)

Ensure the tie downs are positively locked in place.

Ensure transport pins on either side are not worn.

Check that both flip locks are working.

Check for damaged or dislodged pins on the end shackles at either end of both chains.

Loosen the body clamp to remove the access cover assembly and wipe clean.

Ensure the Vacuator™ Valve is clean and clear.

Did the ServiSignal™ indicate the inlet restriction limit was reached?

Replace the primary filter if the restriction limit was reached.

Reinstall the access cover, ensuring the Vacuator™ Valve is facing downward.

Pull the seatbelt completely out of the retractor and inspect the full length for deterioration.

Check for the following issues in the webbing

Check the buckle for damage and correct operation of the latch.

Determine if the following issues are present

Check the security and operation by connecting the buckle and tongue, then try to pull them apart.

Press the release button while pulling the buckle and tongue to ensure correct release.

Does the button stick after release?
