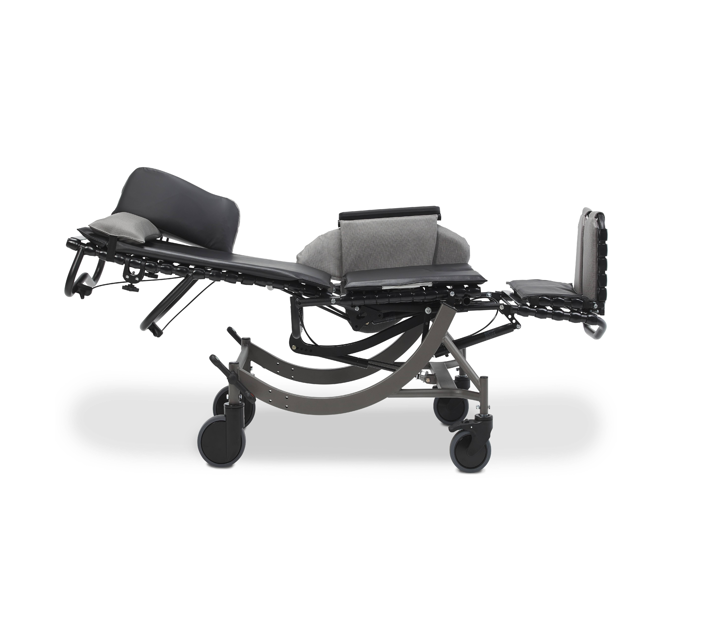

MITY Tilt Recliner Wheelchair V4 WC-19

Warning: If the chair does not appear to be ready to use upon receipt, immediately contact your supplier and do not put the chair into service until any concerns have been resolved.

Chair ready to use upon receipt

Visual inspection for missing parts

Visual inspection for loose fasteners

Functional testing must be successfully completed after visual inspection and before use.

Functional testing completed successfully

Sign off on the Tilt Recliner Wheelchair Check

Warning: This inspection requires trained personnel!

Cylinders that position the seat tilt, back recline, and independent leg rest elevation in good condition

Vinyl straps used in the seat, back, leg rest, footrest and wings in good condition

3 black handles and cables in good condition

Armrest height adjustment pins in good condition

Check all installed accessories that are in good condition

Sign off on the wheelchair inspection

Warning: Test the chair without a resident in it.

Chair's functions tested as described in Section 3

If any function is not operating correctly, take the chair out of service.

Is the seat tilt operation difficult without a resident?

Is the back recline operation difficult without a resident?

Is the footrest elevation operation difficult without a resident?

Do not use lubricants that contain solvents.

White, food grade grease used on the sliding components?

Do not use spray lubricants on any part of the chair.

Warning: This maintenance check requires trained personnel with PPE!

If the chair is not in regular use, report the issues to the maintenance team and stop the procedure

Chair passed the post-maintenance test?

Sign off on the wheelchair maintenance

BRODA chairs should be wiped clean with soap and water. Diluted household strength ammonia or chlorine based cleaner, as well as a hospital grade cleaner may be used if necessary.

Refer to the following guide for cleaning certain staining agents (Applies to the Permablok3® vinyl, as per the vinyl manufacturer’s recommendations) The frame and components of the chair can be cleaned using the same procedure as the vinyl.

The steps below are also located in the Cleaning Guide found on the back of the Broda chair:

Step 1: Remove excess spill with a damp cloth. Clean with a 1:1 mix of Ivory® liquid and water. Rinse with clean water and dry.

Step 2: Use a straight application of concentrated cleaners such as Formula 409® or Fantastik® Spray Cleaner. Then wipe with a clean cloth. If using a hospital grade cleaner, follow the diluting instructions on the label.

Step 3: Use a 1:1 mix of ammonia and water or a 1:4 mix of bleach and water. Rinse with clean water and dry.

Step 4: Use a straight application of naphtha (lighter fluid). Rinse thoroughly with clean water and pat surface dry.

Step 5: Use a 1:1 mix of isopropyl alcohol and water. If the stain persists, use straight alcohol. Rinse thoroughly with clean water and pat dry. If the stain remains, use a 1:1 mix of acetone and water. Rinse with clean water and pat surface dry.

*Note: for cleaning that requires steps 4 or 5 – Use a soft cotton cloth saturated with the cleaning material and rub the stain in circles 10 times. Pat dry with another soft cotton cloth, and check results.
