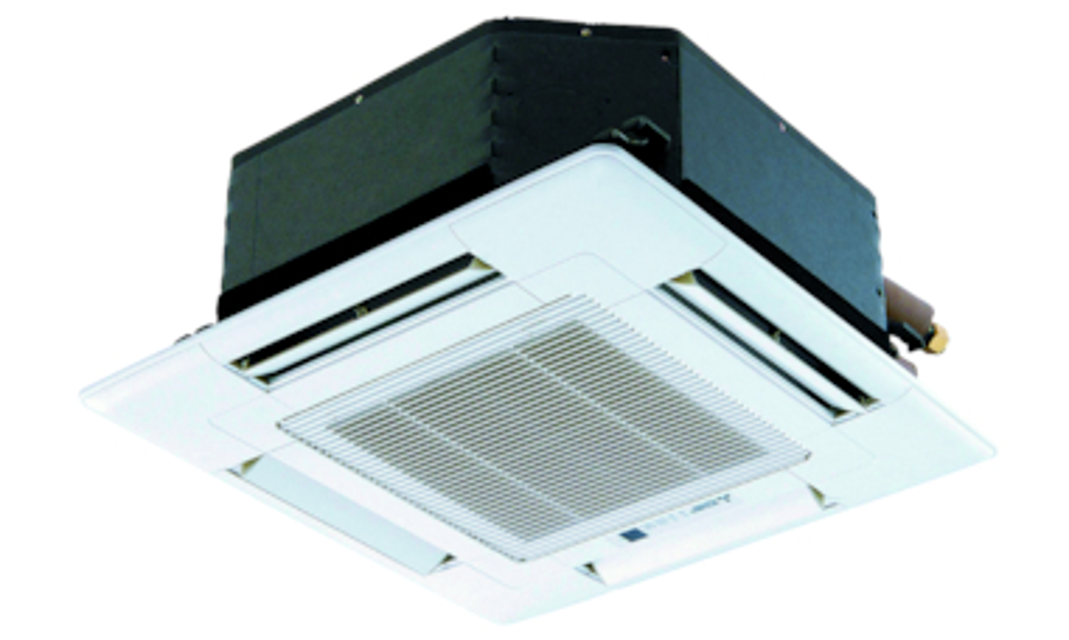

Mitsubishi Air Conditioner SLZ-KA15NAR1
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Mitsubishi Air Conditioner SLZ-KA15NAR1
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Mitsubishi Air Conditioner SLZ-KA15NAR1
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Air Conditioner Model SLZ-KA15NAR1
Integrate maintenance plans directly into your work orders in MaintainX.
Electrical Part Removal
Remove the 2 screws and the control box cover
Check that all the electrical parts are in place
Pipe Temperature Thermistor/Liquid TH2 / Condenser/Evaporator Temperature Thermistor TH5 Removal
Panel and Drain Pan Removal
Remove the panel (Refer to step 3)
Remove the drain pan (Refer to step 6)
Disconnect the indoor coil thermistor from the holder
Cover Removal
Remove the 3 screws fixed to the piping cover, and remove the piping cover (See Photo 9)
Remove the 2 screws fixed to the control box cover, and remove the control box cover
Thermistor Disconnection
Remove the connector (CN21) from the indoor controller board, and disconnect the pipe temperature thermistor/liquid (TH2)
Heat Exchanger Removal
Panel and Drain Pan Removal
Remove the panel
Remove the drain pan
Turbo Fan and Control Box Cover Removal
Remove the nut and the washer from the turbo fan, and remove the turbo fan
Remove the 2 screws fixed to the control box cover, and remove the control box cover
Fan and Piping Cover Disconnection
Disconnect the connector of the fan from the indoor controller board
Remove the 3 screws fixed to the piping cover, and remove the piping cover
Drain Pan Removal
Panel and Thermistor Removal
Remove the panel
Remove the room temperature thermistor
Remove the lead wires held with fastener
Drain Pan and Fan Guard Removal
Remove the screws fixed to the drain pan
Remove the drain pan
Remove the fan guard
Fan Motor Mf Removal
Panel and Drain Pan Removal
Remove the panel. (Refer to step 3)
Remove the drain pan. (Refer to step 6)
Turbo Fan and Control Box Cover Removal
Remove the nut and the washer from the turbo fan, and remove the turbo fan.
Remove the 2 screws fixed to the control box cover, and remove the control box cover.
Connector Disconnection
Disconnect the connectors of the (fan 1) and the (fan 2) from the indoor controller board.
Piping Cover and Flat Plate Removal
