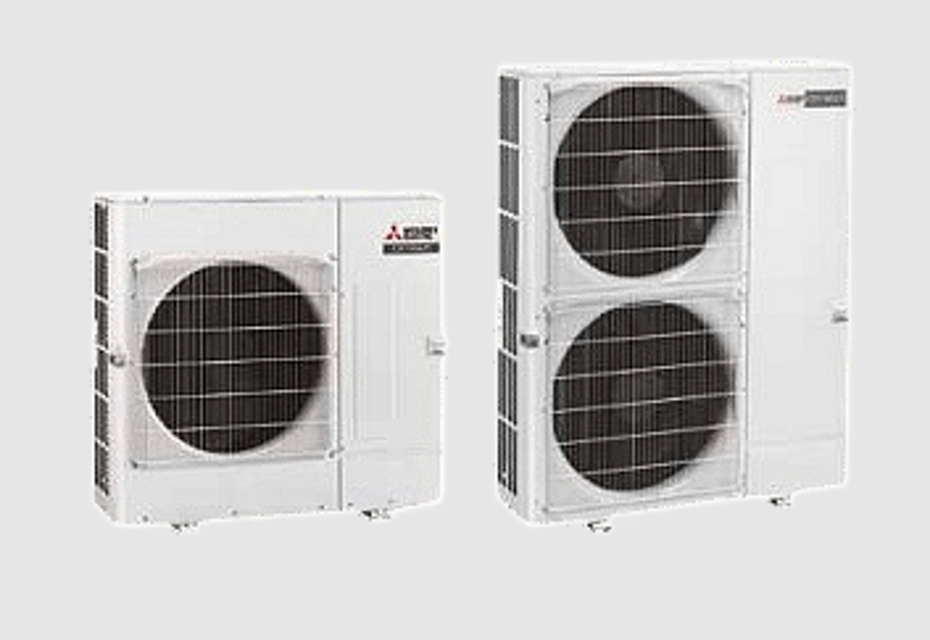

Mitsubishi Air Conditioner PUMY-P48NKMU1-BS

Need answers fast?
Explore the manual using AI.

Mitsubishi Air Conditioner PUMY-P48NKMU1-BS
Mitsubishi Air Conditioner PUMY-P48NKMU1-BS

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Mitsubishi Air Conditioner PUMY-P48NKMU1-BS

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Mitsubishi Air Conditioner PUMY-P48NKMU1-BS

Mitsubishi Air Conditioner PUMY-P48NKMU1-BS

Create an account to install this asset package.

Maintenance Plans for Mitsubishi Air Conditioner Model PUMY-P48NKMU1-BS

Integrate maintenance plans directly into your work orders in MaintainX.

Accumulator Removal

Check mark

(1) Remove the service panel. (See Figure 1)

Check mark

(2) Remove the top panel. (See Figure 1)

Check mark

(3) Remove the front cover panel. (Refer to procedure 13 (3))

Check mark

(4) Remove the back cover panel. (Refer to procedure 13 (5))

Check mark

(5) Remove the electrical parts box. (See Photo 4)

Check mark

(6) Remove the valve bed. (Refer to procedure 8 (4))

Check mark

(7) Remove the cover panel (front). (Refer to procedure 8 (5))

Check mark

(8) Remove the cover panel (rear). (Refer to procedure 8 (6))

Check mark

(9) Remove the side panel (R). (Refer to procedure 8 (7))

Run this procedureArrow right

Bypass Valve Coil SV1 / Bypass Valve Removal

Check mark

Panel Removal

Check mark

Remove the service panel

Check mark

Remove the top panel

Check mark

Remove the cover panel (front)

Check mark

Remove the cover panel (rear)

Check mark

Remove the side panel (R)

Check mark

Bypass Valve Coil Removal

Check mark

Remove the bypass valve coil fixing screw (M4 × 6)

Check mark

Remove the bypass valve coil by sliding the coil upward

Run this procedureArrow right

4-Way Valve Coil 21S4 Removal

Check mark

Remove the service panel

Check mark

Remove 4-way valve coil fixing screw (M5 × 7)

Check mark

Remove the 4-way valve coil by sliding the coil toward you

Check mark

Disconnect the connector 21S4 (green) on the multi controller circuit board in the electrical parts box

Run this procedureArrow right

Thermistor <Outdoor Liquid Pipe> TH3 / Thermistor <Compressor> TH4 / Thermistor <Hic Pipe> TH2 Removal

Check mark

Preparation

Check mark

Remove the service panel

Check mark

Refer to Figure 1 for service panel removal

Check mark

Disconnect Connectors

Check mark

Disconnect the connectors on the multi controller circuit board

Check mark

Loosen Clamp and Remove Thermistors

Check mark

Loosen the clamp for the lead wire in the rear of the electrical parts box

Check mark

Pull out the thermistors from the sensor holder

Run this procedureArrow right

Electrical Expansion Valve LEV-A / LEV-B Removal

Check mark

(1) Remove the service panel. (See Figure 1)

Check mark

(2) Remove the top panel. (See Figure 1)

Check mark

(3) Remove the cover panel (front). (Refer to procedure 8 (5))

Check mark

(4) Remove the cover panel (rear). (Refer to procedure 8 (6))

Check mark

(5) Remove the side panel (R). (Refer to procedure 8 (7))

Check mark

(6) Remove the electrical expansion valve coil. (See Photo 10,11)

Check mark

(7) Remove the electrical parts box. (See Photo 4)

Check mark

(8) Recover refrigerant.

Check mark

(9) Remove the welded part of electrical expansion valve.

Run this procedureArrow right
