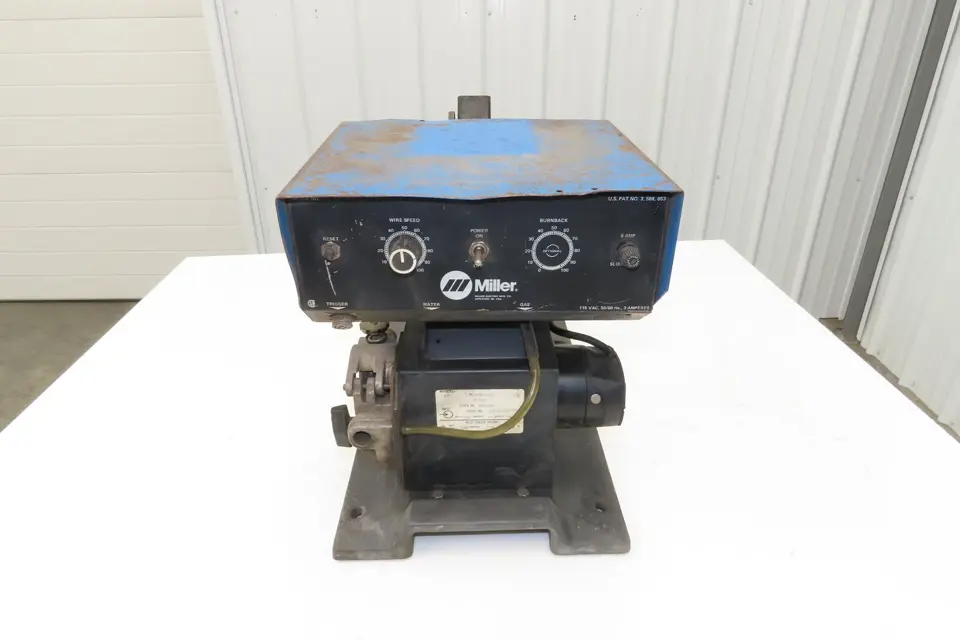

Miller Wire Feeder S-52E

IMPORTANT: Check all labels (see IMPORTANT block, Section 7-1).

Blow out or vacuum dust and dirt from the inside of the wire feeder.

Inspect gun for broken areas, cracks, and loose parts; tighten, repair, and replace as required.

Repair or replace, as required, all hose and cable; give particular attention to frayed and cracked insulation and areas where hose and cables enter equipment.

Remove grease and grime from components, moisture from electrical parts and cable.

Blow out the gun wire guide liner with compressed air when changing wire. This will remove any metal chips and dirt that may have accumulated.

Remove the three drive roll securing screws from each drive roll, and remove drive rolls (see Section 4-3).

Using a wire brush, remove the buildup of wire particles in the wire grooves.

Reinstall drive rolls according to Section 4-3.4. Resume operation.
