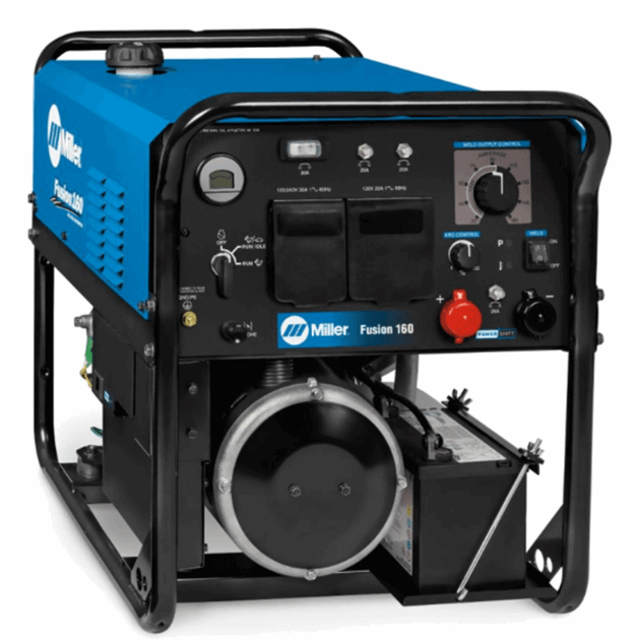

Miller Engine Driven Welder/Generator Fusion 160

Check Air Filter Element (Every 100 Hours)

Replace Air Filter Element (Every 100 Hours)

NOTICE - Do not run engine without air cleaner element or with dirty element.

Inspect foam element. If element is damaged, replace. If element is clogged, wash foam element with soap and water solution. Allow to air dry completely.

Do not wring out foam element, this could cause it to tear.

Oil foam element using clean engine oil.

Squeeze out excess oil. The engine will smoke if excess oil remains.

Clean Cooling System (Every 100 Hours)

Check Spark Plug Gap (0.030 in.)

NOTICE - Do not run engine without air cleaner element or with dirty element.

Inspect foam element. If element is damaged, replace. If element is clogged, wash foam element with soap and water solution. Allow to air dry completely.

Warning: Only trained personnel should perform this procedure

Engine maintenance label checked

Unplug/remove all loads before adjusting speed

Start engine and run until warm

To increase speed, turn screw in (clockwise)

To decrease speed, turn screw out (counterclockwise)

Screws securing starter to blower housing removed

Retractable starter installed onto blower housing

Starter handle pulled out until pawls engage in drive cup
