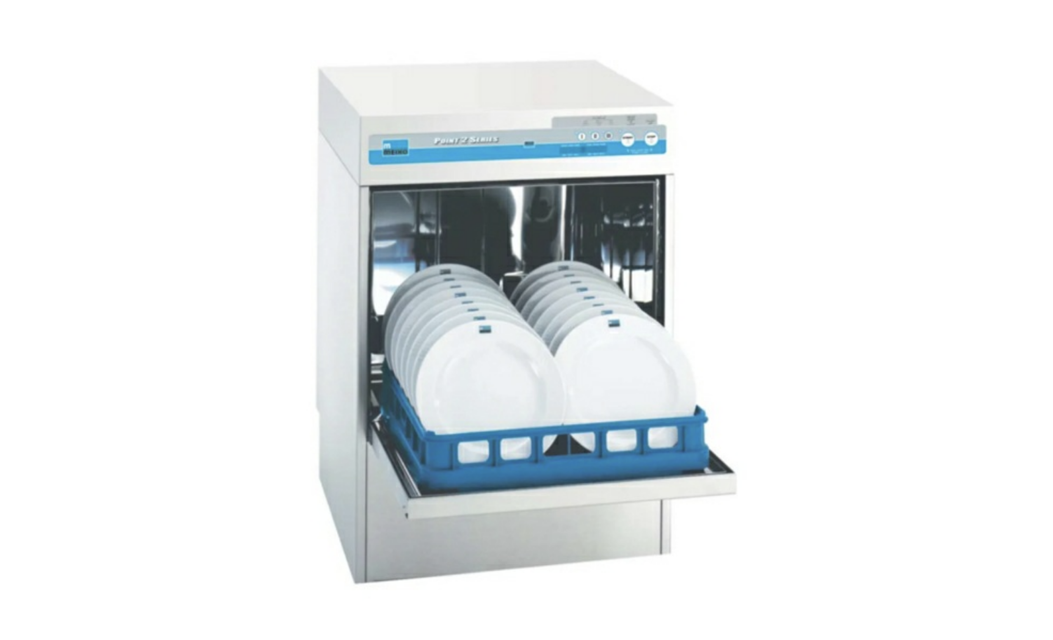

Meiko Dishwasher FV 250B

Check that all connections are watertight

Water Softener Inspection (if fitted)

Check settings of built-in water softener

Check operation of complete or partial water softener

Tank and Heating Element Cleaning

Remove food residues from the tank with a brush

Clean the tank heating element with a brush

Remove food residues from the sieves with a brush

Rinse the wash arms under running water

Identify the type of detergent container

Tilt the front panel forward to access the built-in container

Is the built-in detergent container full?

Refill the built-in detergent container if necessary

Is the external detergent container full?

Replace the external detergent container with a full one if necessary

Ensure only lather-free detergents suitable for industrial dishwashing machines are used

Measure the current water hardness level

Enter the factory pre-set water hardness value (30°Gh)

Is the current water hardness different from the pre-set value?

Adjust the water hardness setting to match the current water hardness level

Re-measure the water hardness level to confirm adjustment

Is the water hardness level correctly adjusted?

Enter the flow pressure reading

Enter the water pressure reading

Is the rinsing system complete?

Does the system produce the correct spray pattern?
