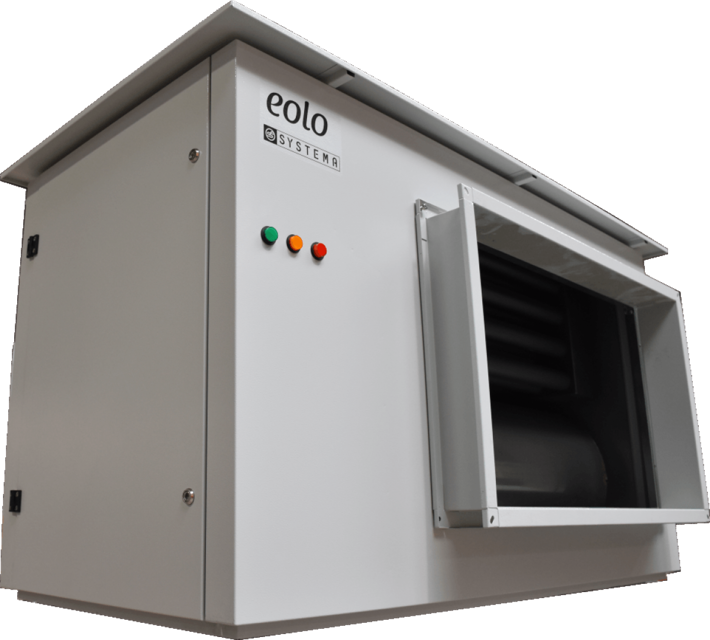

Systema Polska Hot Air Generator BC65RTPA4

Create an account to install this asset package.

Maintenance Plans for Systema Polska Hot Air Generator Model BC65RTPA4

Integrate maintenance plans directly into your work orders in MaintainX.

Initial 2 Hours Belt Maintenance

Safety Precautions

Ensure the appliance is disconnected from the power supply

Motor Rotation Check

Remove the V-belts by unlocking the four screws in the motor base

Is the motor rotation direction correct without load?

If incorrect, disconnect power supply and invert the two power supply phases

V-Belt Installation and Alignment

Reinstall the V-belts

Check that the pulleys are aligned

Run this procedure

Burner Maximum And Fine Adjustment

Rough Adjustment

Activate the burner and adjust it to maximum thermal load.

Check the gas pressure entering the solenoid valve.

Is the gas pressure not lower than the nominal supply pressure decreased by a maximum of -20%?

Remove the cap of the maximum pressure regulator using a screwdriver.

Adjust the maximum pressure regulator using an Allen wrench size 3. Note the direction and degree of adjustment.

Check the gas pressure at the outlet of the solenoid valve.

Does the power comply with the nominal value indicated on the nameplate?

Fine Adjustment

Run this procedure

Fuel Replacement

Eolo BC/BL 15÷120 RT

Shut off the gas and electricity supply

Unscrew the cap (A) from the nozzle holder fitting (C)

Unscrew the nozzle (B) located inside the fitting (C)

Choose the nozzle suitable for the type of gas used

Screw the nozzle into the housing (C)

Screw the cap (A) back on

Start the burner and check the efficiency

Did any anomalies occur during the efficiency check?

Run this procedure

Burner Parameter Adjustment

Initial Checks

Check ignition at the minimum regulated output of the burner

Adjustment Procedures

Are there problems with ignition?

Correct the CO₂ setting with the solenoid valve if ignition problems are present

Does the burner produce resonances at minimum power?

Adjust the air/gas ratio to eliminate resonances

Combustion Analysis

Carry out a combustion analysis

Run this procedure

1 Yearly Hot Air Generator Maintenance

Pre-Maintenance Safety Precautions

Open the main switch by removing current and close the gas valve.

Place a warning sign on the control panel stating: 'System undergoing maintenance, IT IS FORBIDDEN to perform operations on the control panel of the appliances.'

Ensure all personnel are equipped with safety devices and individual protection.

General Maintenance Checks

Check the general condition of the device.

Check the threaded connections of the gas system and the tightness of the gaskets, replace if necessary.

Check the condition of the electrodes and the combustion head, clean if dirty.

Check the condition of the gas mixer, clean with a rag or brush if necessary.

Run this procedure
