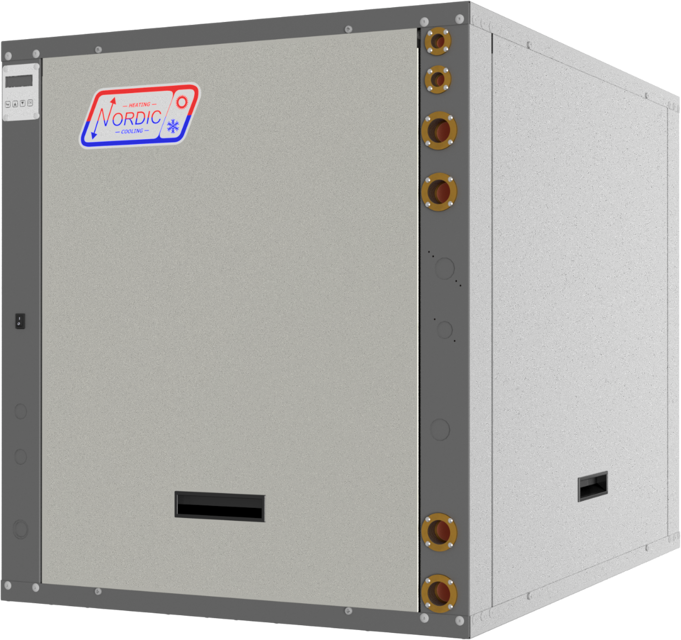

Maritime Geothermal Water-to-Water Heat Pump W-55-H

Create an account to install this asset package.

Maintenance Plans for Maritime Geothermal Water-to-Water Heat Pump Model W-55-H

Integrate maintenance plans directly into your work orders in MaintainX.

Coaxial Heat Exchanger Maintenance

Coaxial Heat Exchanger Flushing Procedure - Open Loop

Isolation and Initial Setup

Isolate the heat exchanger by closing the valves in the IN and OUT ports to the heat exchanger.

Blow out the heat exchanger into a clean 5 gallon bucket using compressed air.

Makeshift Pump System Setup

Is a purge cart available?

If a purge cart is not available, use a 5 gallon plastic bucket, a circulator and some plastic piping to create a makeshift pump system. Connect the inlet and outlet to the heat exchanger ports.

Flushing with RYDLYME

Place 2 gallons of RYDLYME or similar in the purge cart (or bucket).

Run this procedure

1 Yearly Compressor Contactor Maintenance

Inspection

Inspect for pitted points on the contactor

Inspect for burned points on the contactor

Replacement

Is replacement of contactor necessary?

Replace contactor if necessary

Post Maintenance

Clean the work area

Technician's signature

Run this procedure

Control Board Replacement

Turn the power off to the unit

Take a picture of the control board and connectors for reference

Remove all green terminal strips on the left side, the right side and the bottom of the control board

Remove the red six pin display board connector from the left side of the control board

Remove all connectors from the top of the control board

Remove the control board from its four corner standoffs

Remove any remaining standoffs if present

Carefully remove the new control board from the static bag

Place any cut off standoffs from the old board into the same locations on the new board

Run this procedure

LCD Interface Maintenance

Initial Inspection

Is the heat pump problem suspected?

Alarm and Fault Check

Are alarms reported through a BACnet system?

Check for alarms and faults on the LCD Interface or PC App

Describe any alarms or faults found

Problem Rectification

Were any alarms or faults found?

Describe the rectification actions taken

Run this procedure

LCD Interface Board Replacement

Turn the power off to the unit

Remove the display board cable connector from the control board

Slice each of the display board standoff heads off

Pull the display board from the unit

Remove the display board cable connector from the back of the display board

Place a new display board standoff into each of the four holes in the cabinet

Remove the new display board from the static bag it was shipped in

Connect one end of the display board cable to the back of the display board

Place the display board in position and align the four standoffs into the four holes of the board

Run this procedure
