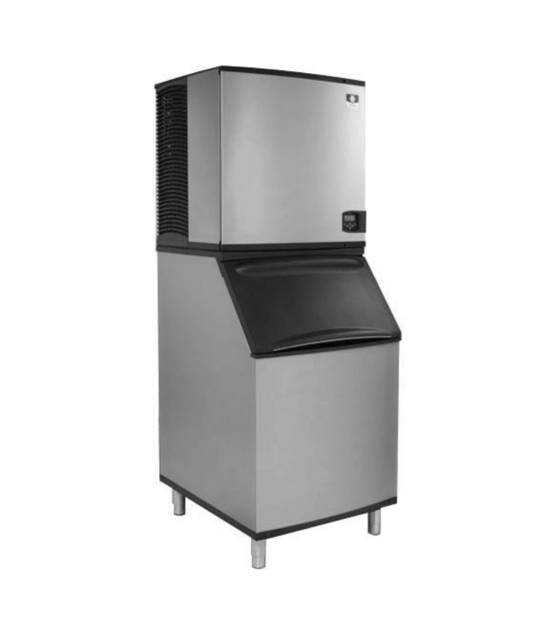

Manitowoc Refrigeration Equipment IY0324A

Wear rubber gloves and safety goggles (and/or face shield) when handling Ice Machine Cleaner or Sanitizer.

Open the front door to access the evaporator compartment.

Ensure ice is not on the evaporator during the clean/sanitize cycle. Choose a method to remove ice:

Remove all ice from the bin/dispenser.

Press the clean switch and wait until the water trough refills and the display indicates add solution.

Add the proper amount of ice machine cleaner based on model.

Ensure you have read and understood all labels on the Manitowoc Cleaner and Sanitizer bottles.

Ensure you are wearing rubber gloves and safety goggles or a face shield.

Cleaning and Sanitizing Procedure

Disassemble the ice machine and bin.

Use Manitowoc Ice Machine Cleaner to clean the machine and bin.

Use Manitowoc Ice Machine Sanitizer to sanitize the machine and bin.

Discard all ice produced during the cleaning and sanitizing procedures.

Ensure the area around the ice machine is clear of obstacles.

Gather cleaning materials: damp cloth, mild dish soap, clean soft cloth.

Wipe surfaces with a damp cloth rinsed in water to remove dust and dirt.

Is there any greasy residue remaining?

If greasy residue persists, use a damp cloth rinsed in a mild dish soap and water solution.

Wipe dry with a clean, soft cloth.

Measure 2 ounces of Manitowoc ice machine cleaner

Mix the cleaner and water in a container

Clean all probe surfaces including all plastic parts

Thoroughly rinse probes with clean water

Gently flex the curtain in the center and remove it from the right side

Depress tabs on right and left side of the water trough

Allow front of water trough to drop as you pull forward to disengage the rear pins

Pull the water level probe straight down to disengage

Lower the water level probe until the wiring connector is visible
