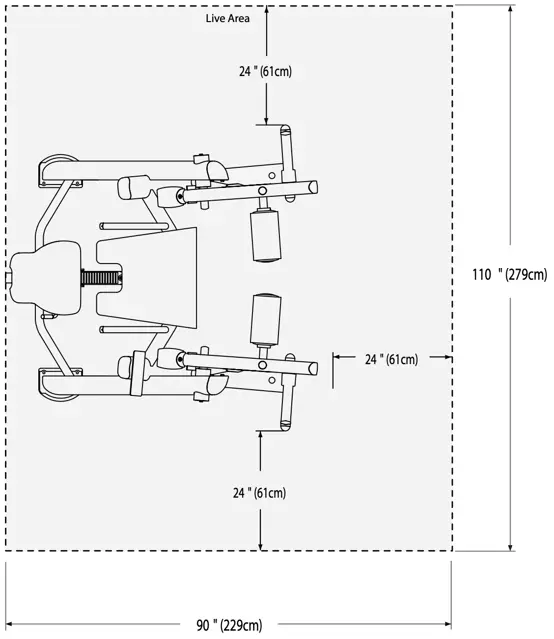

Life Fitness Signature Series Plate Loaded Leg Extension SPLLE

Inspect Hardware. Check for loosening. Tighten as required.

Frames. Inspect for wear and damage.

Handgrips. Check for wear and damage.

Visually inspect all hardware for loosening, tampering or wear.

Inspect all accessories, connecting links, and carabiner clips for wear.

Check for belt stretch on SPLBC and adjust as necessary by loosening the belt clamp on top of the lower movement arm, then pulling loose end of belt to tighten. Tighten belt clamp down.

Sign off on the machine maintenance

Frames cleaned with a standard, non-abrasive, wax finish

Hand Grips waxed with an approved or compatible cleaner

Polishing compound used and shoe scuffs removed from powder coated surfaces

Unit washed with approved or compatible cleaners using a clean sponge or a soft cloth

Unit rinsed well with clean water

1. Clean Upholstery with an approved or compatible cleaner.

2. Inspect Belts. Look for wear or damage and proper tension. Pay close attention at bends and attachment points.

1. Wipe down upholstery with a mild soap and water or comparable all purpose cleaner.

2. Visually inspect belts for wear at and around connections and along the entire length of the belt. Always replace at first sign of wear.

Use polishing compound (such as car wax) and remove shoe scuffs from powder coated surfaces as necessary.; MINIMIZE SCRATCHES

Wash the unit with approved or compatible cleaners using a clean sponge or a soft cloth.; Rinse well with clean water. Dry thoroughly with a chamois or moist cellulose sponge to prevent water spots.

Fresh paint splashes, grease and smeared glazing compounds can be removed easily before drying by rubbing lightly with isopropyl alcohol.; Afterward, a warm final wash should be made, beginning with a mild soap or detergent solution and ending with a thorough rinsing with clean water.;

1. Inspect For paint chips. Fill in immediately with Life Fitness touch-up paint.

2. Clean Guide Rods with a cotton cloth.

1. Inspect hardware on all machines and tighten any bolts or nuts that may have loosened over the life of the product.

Use polishing compound (such as car wax) and remove shoe scuffs from powder coated surfaces as necessary.; MINIMIZE SCRATCHES

Wash the unit with approved or compatible cleaners using a clean sponge or a soft cloth.; Rinse well with clean water. Dry thoroughly with a chamois or moist cellulose sponge to prevent water spots.

Fresh paint splashes, grease and smeared glazing compounds can be removed easily before drying by rubbing lightly with isopropyl alcohol.; Afterward, a warm final wash should be made, beginning with a mild soap or detergent solution and ending with a thorough rinsing with clean water.;
