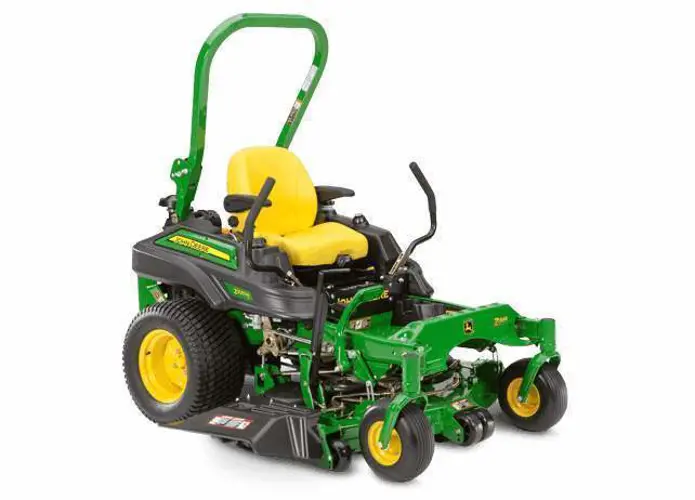

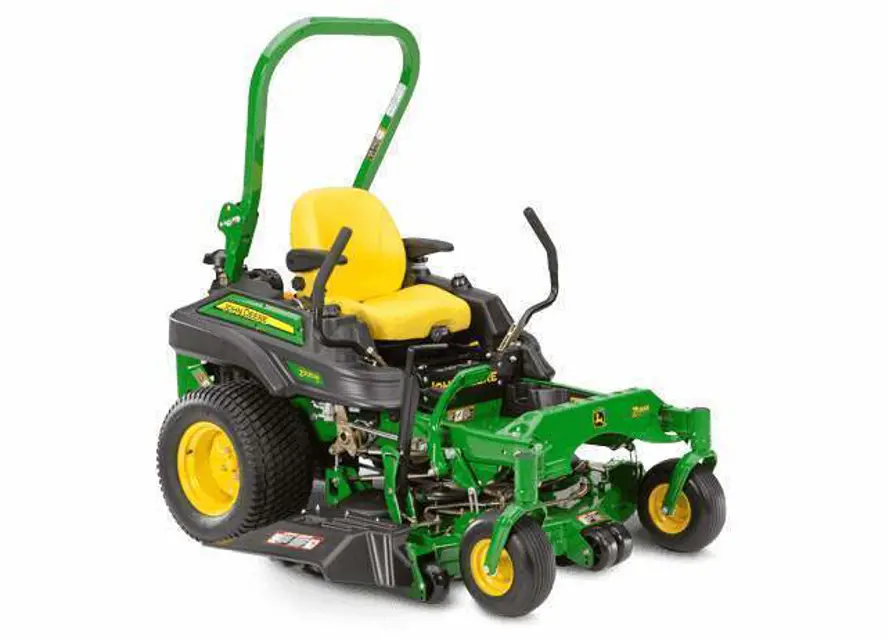

John Deere Zero-Turn Mower Z920R

Foot plate rotated up using handles

Tabs of foot plate placed into slots in frame

Sign off on the foot plate replacement

Machine lifted with a safe lifting device

Wheel removed from assembly yoke

Replacement wheel installed with bearing dust caps

Wheel bolt and hex nut installed

Park machine on a hard, level surface.

Stop the engine and lock the park brake.

Raise the mower deck to the transport position.

Lift the operator seat and lock into position.

Turn the hex nut (B) clockwise to increase the spring tension.

Turn the hex nut (B) counterclockwise to decrease the spring tension.

Sign off on the spring tension maintenance

Clean area around dipstick before removing it

Remove dipstick and wipe it clean

Install dipstick in tube, but do not screw onto threads

Check oil level on dipstick; make sure that oil level is between the ADD and FULL marks

If oil is low, add oil to bring oil level no higher than the FULL mark on dipstick

If oil level is above the FULL mark, drain to the proper level

Warning: Park machine safely before starting the procedure

Are both motion control levers moved forward?

Are the control levers equally aligned?

If position of control levers are unequal, an adjustment is necessary

Are both left and right motion control levers moved to desired position on control arm until levers are aligned?

Sign off on the motion control levers maintenance
