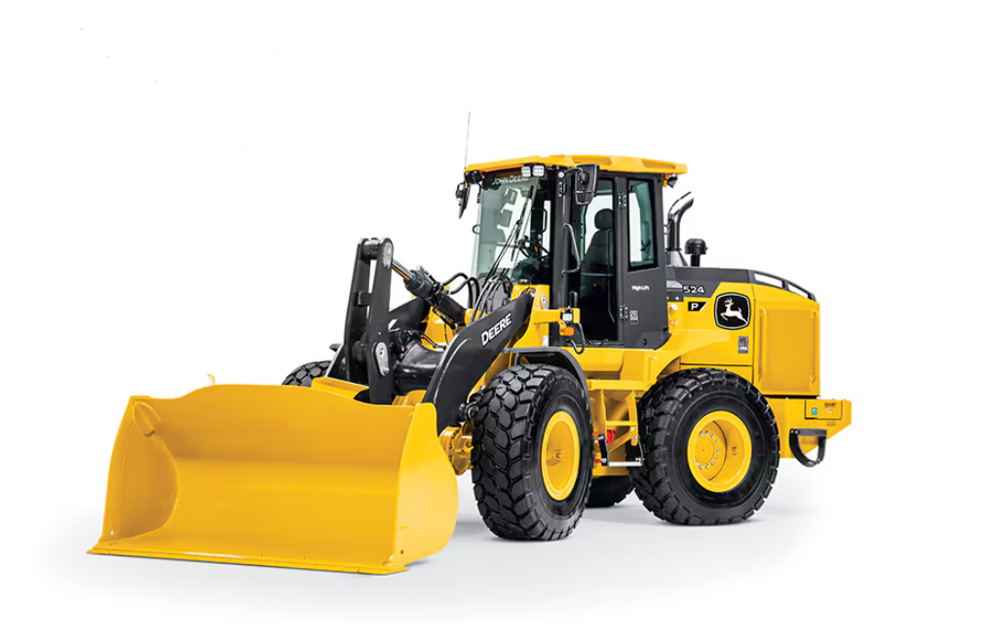

John Deere Wheel Loader 524P

Need answers fast?
Explore the manual using AI.

John Deere Wheel Loader 524P
John Deere Wheel Loader 524P

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for John Deere Wheel Loader 524P

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

John Deere Wheel Loader 524P

John Deere Wheel Loader 524P

Create an account to install this asset package.

Maintenance Plans for John Deere Wheel Loader Model 524P

Integrate maintenance plans directly into your work orders in MaintainX.

500 Hourly Maintenance

Check mark

Lubricate driveline upper and lower sliding joints

Check mark

Lubricate front and rear axle shaft seals

Check mark

Check hybrid battery electrolyte level (if equipped)

Check mark

Replace hydraulic reservoir breather filter

Check mark

Check front and rear axle oil level

Check mark

Check air intake hoses and charge air cooler tube couplings

Check mark

Drain and refill engine oil and replace filter

Check mark

Replace primary fuel filter

Check mark

Replace final fuel filter

Run this procedureArrow right

2000 Hourly Maintenance

Check mark

Drained and refilled front axle oil

Check mark

Drained and refilled rear axle oil

Check mark

Replaced open crankcase ventilation (OCV) filter

Check mark

Drained and refilled transmission oil

Check mark

Replaced transmission oil filter

Check mark

Rerun transmission clutch calibration

Check mark

Sign off on the 2000 hourly maintenance

Run this procedureArrow right

1000 Hourly Maintenance

Check mark

Replace air cleaner dust unloader valve

Check mark

Replace engine air cleaner elements

Check mark

Check coolant condition

Check mark

Replace axle oil filters (if equipped)

Check mark

Replace fuel tank breather filter

Check mark

Lubricate frame hinge pivots

Check mark

Drain and refill park brake oil

Run this procedureArrow right

As required Maintenance

Check mark

Check windshield washer fluid level

Check mark

Inspect tires and check pressure

Check mark

Check wheel bolt torque

Check mark

Inspect engine air cleaner elements

Check mark

Inspect serpentine belt

Check mark

Clean cooler cores

Check mark

Check rear camera and radar object detection (ROD) system (if equipped)

Check mark

Drain water from primary fuel filter with water separator

Check mark

Clean and tighten battery terminals

Run this procedureArrow right

10 Hourly / Daily Maintenance

Check mark

Clean air cleaner dust unloader valve

Check mark

Check coolant level at surge tank

Check mark

Check engine oil level

Check mark

Check hydraulic system oil level

Check mark

Check transmission oil level

Run this procedureArrow right

Parts for John Deere Wheel Loader 524P

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Cab Recirculation Air Filter Element

AT307501

Cab Fresh Air Filter Element

AT191102

Engine Rocker Arm Cover Gasket

R528743

Open Crankcase Ventilation (Ocv) Filter

DZ105100

Axle Oil Filters

AT367635

Cab Recirculation Air Filter Element

AT307501

Cab Fresh Air Filter Element

AT191102

Engine Rocker Arm Cover Gasket

R528743

Open Crankcase Ventilation (Ocv) Filter

DZ105100

Axle Oil Filters

AT367635

Cab Recirculation Air Filter Element

AT307501

Cab Fresh Air Filter Element

AT191102

Engine Rocker Arm Cover Gasket

R528743

Open Crankcase Ventilation (Ocv) Filter

DZ105100

Axle Oil Filters

AT367635
