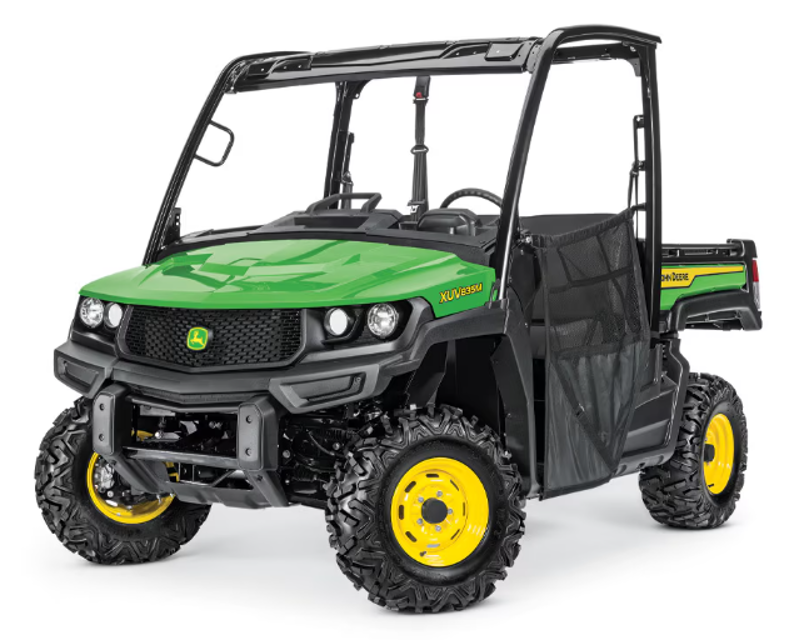

John Deere Tractor XUV835M

Check HVAC filter - if equipped

Check air cleaner dust unloading valve

Check HVAC dust unloading valve - if equipped

Inspect and clean primary and secondary clutch

Check compressor idler bearing - if equipped

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

3. Remove dipstick (A) and wipe it clean.

● Oil level must be between fill marks on dipstick.

● If oil level is low, add oil to bring oil level no higher than upper mark on dipstick.

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

4. Rotate canister cover (B) counterclockwise to unlock. Remove cover.

5. Remove and discard filter element (C). Replace with a new filter element.

6. Install cover over canister and rotate clockwise to lock. Make sure that the dust unloading valve is pointing downward.

1. Warm the oil by running the engine.

2. Park the machine safely. (See Parking Safely in the SAFETY section.)

4. Place a drain pan under the engine drain plug hole (A) and oil filter drain hole (B) in frame.

5. Remove oil fill cap (C) from filler opening.

6. Remove drain plug (D) and drain oil into an oil drain pan. Allow oil to drain completely.

7. Remove and discard oil filter (E) on the front of the engine. Wipe off filter base on engine.

8. Put a light coat of clean engine oil on gasket of the new oil filter.

4WD front differential oil changed?
