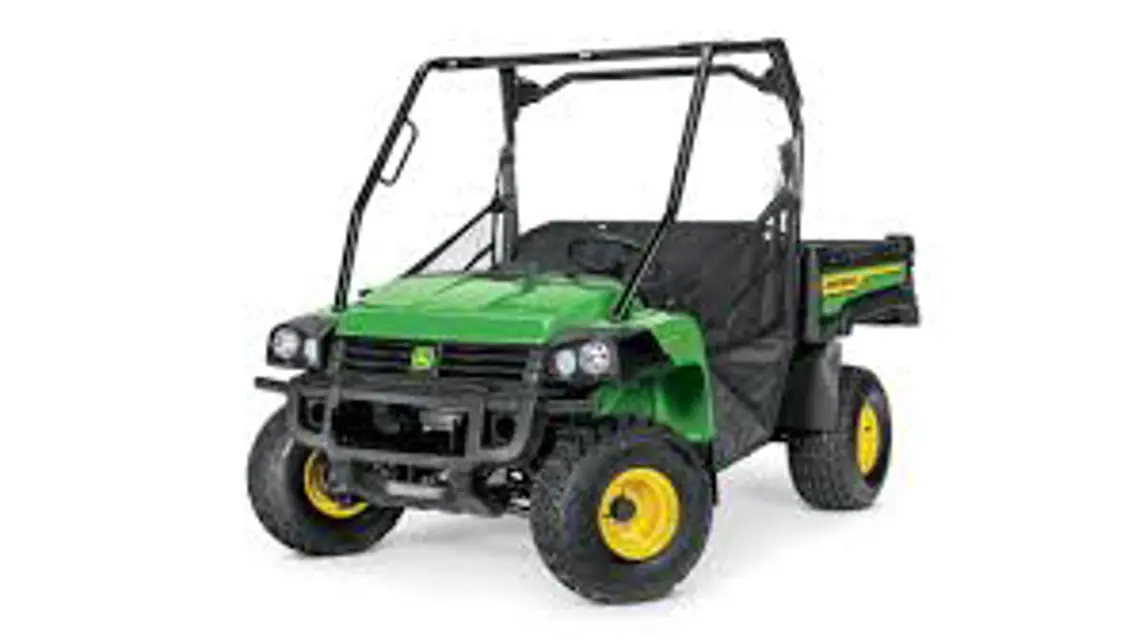

John Deere Tractor HPX815E

Inspect suspension bushings for play

Inspect wheel bearings for play

Sign off on the maintenance check

● Change engine oil and filter.

2. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

4. Place drain pan under engine drain valve.

5. Remove drain plug (A). Allow oil to drain completely.

6 Remove and discard oil filter (B) on transaxle side of engine. Wipe off filter base on engine.

7. Put a light coat of clean engine oil on gasket of new oil filter.

8. Install new filter until rubber gasket contacts filter base. Tighten filter an additional one-half turn.

Check and tighten wheel bolts to correct torque

Carefully clean area around reservoir cap

Remove reservoir cap and visually check fluid level

If fluid is low, add fluid to maintain level within specification

Check reservoir cap bellows are in place and not damaged

Brake fluid flushed and refilled?

Shocks and struts inspected for leaks?

Engine valve clearance adjusted?

● Lubricate drive line (three locations).

● Check 4WD front differential oil level.

1. Park machine safely. (See Parking Safely in the SAFETY section.) Allow machine to cool down for at least one hour.

2. Remove fill plug (A) located on right side of 4WD front differential

3. Oil should be level with the bottom of the fill port. If oil level is low:

a Add oil through fill port until level is correct,

b. Install and tighten fill plug to specification.

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)
