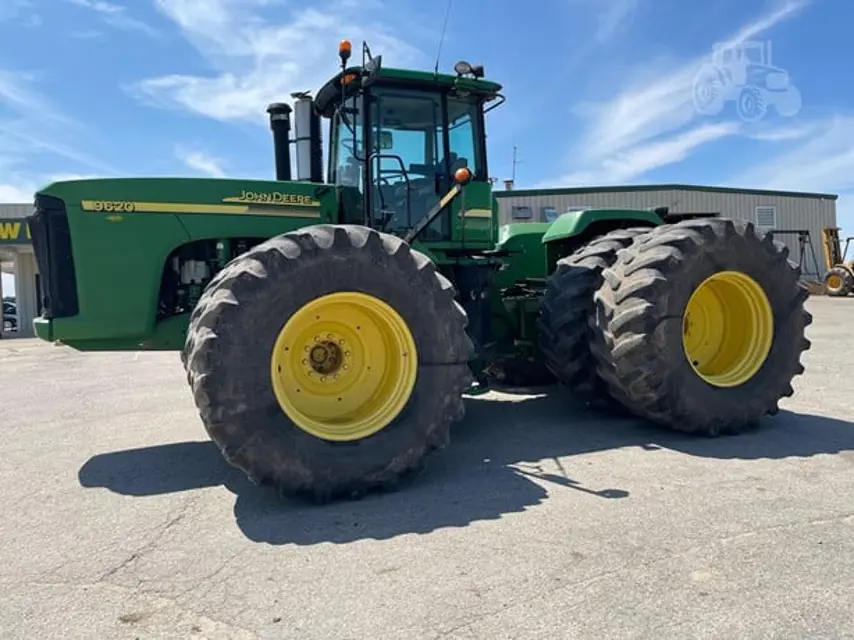

The John Deere Tractor 9620 is a powerful agricultural machine designed for heavy-duty tasks. Known for its reliability and efficiency, this tractor excels in various farming applications, making it an essential asset for modern agriculture. With advanced features and robust performance, the 9620 is a top choice for farmers seeking productivity and durability.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for John Deere Tractor 9620

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

John Deere Tractor 9620

Create an account to install this asset package.

Maintenance Plans for John Deere Tractor Model 9620

Integrate maintenance plans directly into your work orders in MaintainX.

Yearly Maintenance

Primary Engine Air Filter replaced

Secondary Engine Air Filter replaced

Cab Air Filter replaced

Recirculation Filters replaced

Hitch Sensor lubricated

Seat Belts inspected

Motor Seal Drain Filter replaced (if equipped)

Sign off on the yearly maintenance

Run this procedure

10 Hourly / Daily Maintenance

Check Engine Oil Level

Check Coolant Level

Drain Water Separator

Check Transmission Oil Level

Check Hydraulic Oil Level

Check Axle Oil Level

Park tractor on level ground.

Operate engine at 2100 rpm, with transmission in PARK position, for at least 5 minutes (or longer with cold oil) to fill axles and return oil from the axles to the transmission.

Stop engine and allow the oil level to stabilize in the sight gauge for at least 5 minutes. Recheck oil level and refill at fill tube (A) as necessary.

Run this procedure

750 Hourly Maintenance

Hydraulic Filter replaced?

Reservoir Screen cleaned?

Reservoir Breather Filter replaced?

Transmission/Axle Filter replaced?

Coolant tested and Coolant Conditioner added?

Water Separator cleaned?

Fuel Pre-filter cleaned?

Engine Air Intake System cleaned?

Run this procedure

1500 Hourly Maintenance

Change Transmission/Axle, and Hydraulic Oil —24-Speed POWRSYNC Transmission

Steps

Change Transmission/Axle, and Hydraulic Oil —18-Speed Powershift Transmission

Steps

Clean Transmission Sump Screen

Inspect Alternator and Fan Belt Tensioners

Steps

Check Axle End Play

Check Axle End Play (Normal Use) (2000 Hourly Check)

Run this procedure

2 Yearly Maintenance

Drain, Flush, and Refill Engine Cooling System

Relieved pressure and removed surge cap

Removed bottom access panel and opened radiator drain fitting and engine block drain cock

Removed thermostat cover and thermostats. Installed cover without thermostats

Closed drain cocks and filled system with a commercial cooling system cleaning solution. Operated engine to operating temperature. Stopped engine and drained system

Closed drain cocks and filled system with clean water. Operated engine to operating temperature. Stopped engine and drained system

Removed thermostat cover and cleaned all sealing material from thermostat cover and housing mounting surfaces

Applied sealant to new gasket and installed thermostats and gasket

Installed smaller (non-blocking) thermostat in top position with vent (wiggle wire) at 12 o'clock position. Installed larger blocking thermostat in bottom position

Run this procedure
