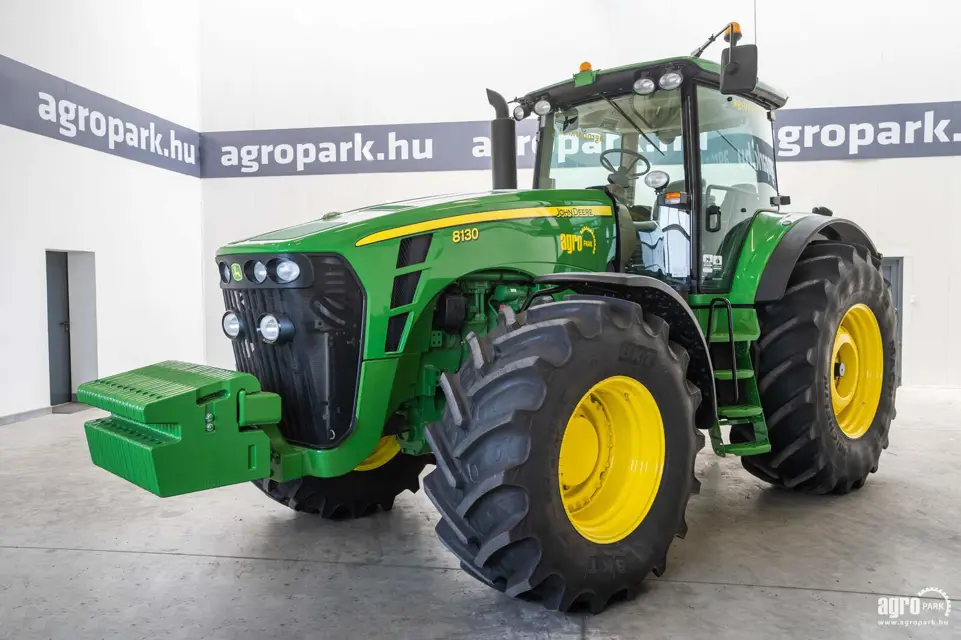

The John Deere Tractor 8130 is a powerful agricultural machine designed for efficiency and durability. This versatile tractor model excels in various farming tasks, ensuring optimal performance and reliability for operators in the field. With advanced features and robust construction, the 8130 is a top choice for modern agricultural operations.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for John Deere Tractor 8130

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

John Deere Tractor 8130

Create an account to install this asset package.

Maintenance Plans for John Deere Tractor Model 8130

Integrate maintenance plans directly into your work orders in MaintainX.

10 Hourly / Daily Maintenance

Engine Oil Check

Tire Check

Transmission/Hydraulic Oil Level Check

Air Brake Tank Draining

Hitch Components Lubrication

Coolant Level Check

If coolant level is low, follow the steps below:

Raise hood

Check for any signs of leakage

Run this procedure

250 Hourly Maintenance

Changing Engine Oil and Filter

Steps to change engine oil and filter

Checking Neutral Start System (PST or IVT Transmissions)

Steps to check neutral start system

Checking Transmission PARK Position

Checking Wheel and Wheel Weight Bolts

Lubricating 2WD Front Axle And Front Wheel Bearings

Lubricating MFWD Axle And MFWD Axle U-Joints

Steps to lubricate MFWD Axle And MFWD Axle U-Joints

Run this procedure

100 Hourly Maintenance

Checking Coolant Level (De-aration Tank)

Hood raised

De-aeration tank cap pressure relieved

De-aeration tank level

Coolant added as specified in Fuel, Lubricants and Coolant section

De-aeration tank cap reinstalled

Changing Engine Oil and Filter

Run this procedure

Yearly Maintenance

Cleaning or Replacing Primary and Secondary Engine Air Filters

Unfasten plastic clips and remove filter cover

Turn and pull to remove primary filter

Clean filter using compressed air

Check filter for damage with a bright light

Check gasket condition

Replace filter elements and install cover

Servicing Batteries

Remove battery compartment cover

Run this procedure

750 Hourly Maintenance

Cleaning MFWD Axle Vent Filter

Cleaning Fuel Tank Vent Filter

Checking Air Intake System

Testing Coolant

Raise hood

Slowly turn de-aeration tank cap (A) to relieve pressure. Remove cap.

Test coolant using TY26605 COOL-GARD™II 3-way test strips available from your John Deere dealer.

Add TY26603 COOL-GARD II Coolant Extender available from your John Deere dealer as indicated by the color matrix on reader card in test strip pack. If tank is too full, drain a small amount of coolant from system before extender is added.

Install de-aeration tank cap and lower hood.

Run this procedure
