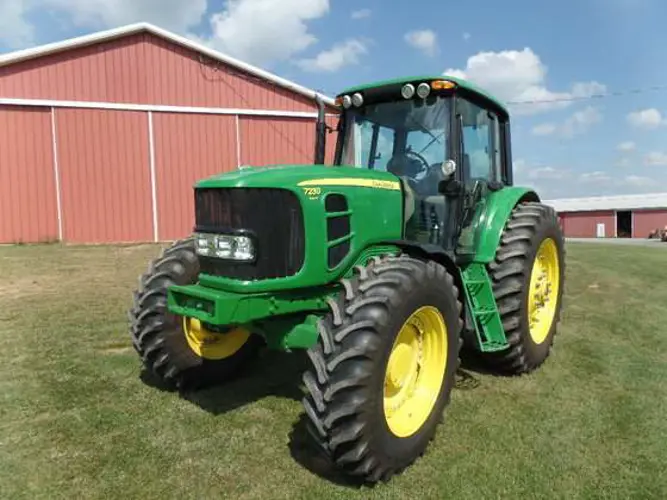

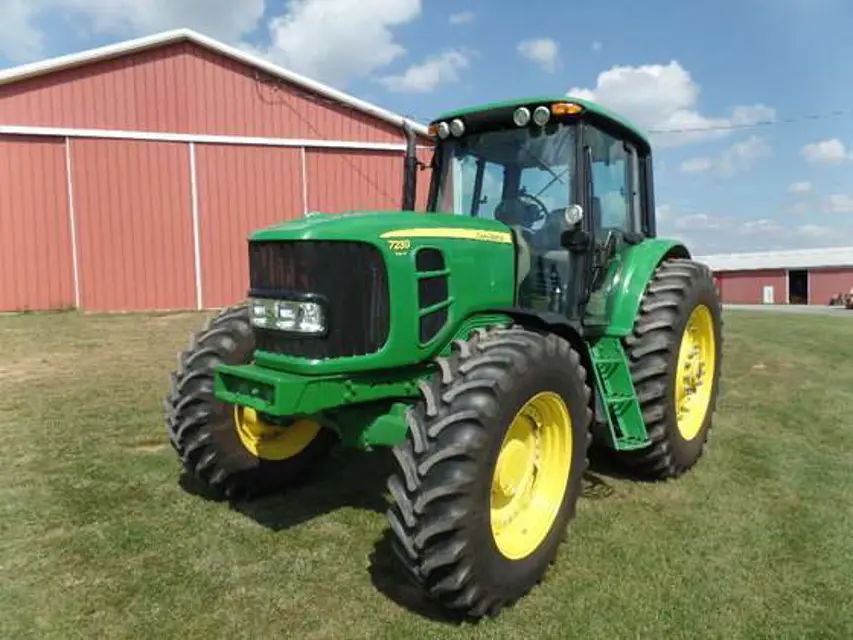

The John Deere Tractor 7230 is a robust agricultural machine designed for efficient farming operations. Known for its reliability and performance, this tractor model excels in various tasks, making it an essential asset for modern agricultural practices.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for John Deere Tractor 7230

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

John Deere Tractor 7230

Create an account to install this asset package.

Maintenance Plans for John Deere Tractor Model 7230

Integrate maintenance plans directly into your work orders in MaintainX.

500 Hourly Maintenance

Change engine oil

Change engine oil filter element

Change fuel filter

Lubricate rear axle

Lubricate draft link bearings (7330 to 7530 only)

Check the air intake hoses

Check ground connections (engine and cab)

Check engine drive belt for wear

Change cab air filters

Run this procedure

1500 Hourly Maintenance

Change oil in axle and final drives (tractors with front-wheel drive)

Did you replace oil in axle housing and final drives after the first 100 hours of operation?

Did you replace oil after every 1500 hours of operation or once every 2 years, whichever occurs first?

Did you drain oil while it is still warm, i.e. immediately after a prolonged period of operation?

Change Oil In Front-Wheel Drive Axle Housing

Did you remove drain screw (A) and drain oil into a suitable container?

Did you re-install drain screw and tighten to 90 N.m (66 lb .- ft.)?

Did you remove oil level/filler plug (B)?

Did you fill with fresh oil? The oil level must be up to the filler hole.

Run this procedure

Yearly Maintenance

Inspect seat belt

Drain engine crankcase and refill with fresh oil

Check engine drive belt for wear

Lubricate front PTO drive shaft

Replace cab air filters

Use coolant test strip to test coolant

John Deere COOL-GARD™ II Premix and COOL-GARD II Concentrate are maintenance-free coolants for up to 6 years or 6000 hours of operation, provided that the cooling system is topped off using only John Deere COOL-GARD II Premix coolant. Test the coolant condition annually with coolant test strips designed for use with John Deere COOLGARD II coolants. If the test strip chart indicates that additive is required, add John Deere COOL-GARD II EXTENDER as directed.

Open the hood

First loosen cap (A) and then take it off

Run this procedure

750 Hourly Maintenance

Unscrew filter elements

Coat sealing rings of new filter elements with grease

Screw in filter elements

Use original John Deere filter elements only!

Change front PTO filter

Run this procedure

10 Hourly / Daily Maintenance

Check engine oil level

Check the fuel filter

Open bleed screw (A)

Open drain plug (B) by 3/4 of a turn. Retighten the plug as soon as water and sediment deposits have drained out

Open drain plug (C) by 3/4 of a turn. Retighten the plug as soon as water and sediment deposits have drained out

Tighten bleed screw (A)

Turn key in main switch to the right to the first switch position so that the fuel transfer pump is operating. Keep the pump running for approx. 40 seconds

If water was present in fuel filter, use a 1/2-inch square-section key to loosen drain plug (D) under the fuel tank by one turn. After draining off any water and sediment deposits, retighten drain plug until hand-tight

Check lights
