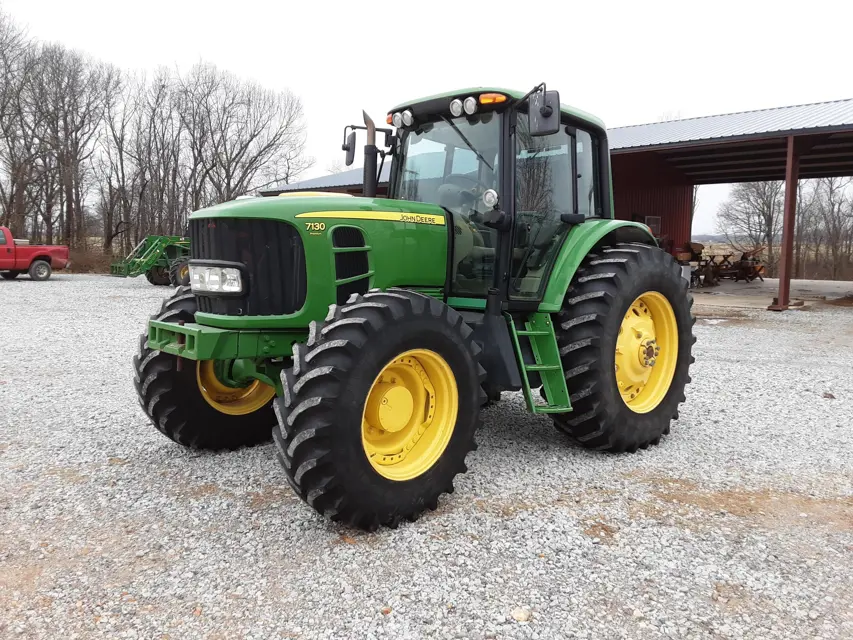

John Deere Tractor 7130

Drain engine crankcase and refill with fresh oil (see Service / Every 500 Hours)

Replace engine oil filter (see Service / Every 500 Hours)

Tighten screws on front loader bracket (see Service / Every 250 Hours)

Check air intake hoses (see Service / Every 500 Hours)

Replace transmission/hydraulic oil filter (see Service / Every 750 Hours)

Drain the axle housing and final drives, and refill with fresh oil (see Service / Every 1500 Hours)

Lubricate front PTO drive shaft (see Service / Every 250 Hours)

Retighten cab attaching screws. Torques: front screws 280 N-m (205 Ib-ft), rear screws 200 N-m (150 lb-ft)

Sign off on the 100 Hourly Maintenance

Check oil level of transmission/hydraulic system

Park tractor so that it is level.

Apply park brake or engage park lock.

Lower draft links, front loader, front implements and other implements that draw oil from the transmission.

7130 and 7230 tractors: Oil level should be between marks (A) on the sight-glass. If it is not, add more oil at filler neck (B).

7330 to 7530 tractors: Oil level should be between the marks on sight-glass (A). If it is not, add more oil at filler neck (B).

Check the level of the electrolyte in the battery

Lubricate front axle (tractors without front-wheel drive)

Change the coolant (if COOL-GARD II is used and it is checked regularly every year)

On tractors with cab, is the heater control turned as far as it will go to the right?

Is cap (A) first loosened and then taken off?

Is connect/disconnect control (B) turned anti-clockwise as far as it will go?

Is a container placed under the drains to trap the coolant as it emerges?

As soon as system is empty, is drain plug (C) closed and the system filled with clean water?

Is the engine run until it reaches operating temperature?

Is the engine shut off and the cooling system drained?

Change oil in axle and final drives (tractors with front-wheel drive)

Drained oil while it is still warm?

Enter the torque value when tightening the drain screw

Oil level up to the filler hole?

Change Oil in Front-Wheel Drive Final Drives

Turned wheel until drain screw is at the bottom?

Oil level with drain screw bore?

Change oil in transmission/hydraulic system

Started engine and operated several hydraulic functions to heat up oil?

Open drain plug (B) by 3/4 of a turn. Retighten the plug as soon as water and sediment deposits have drained out

Open drain plug (C) by 3/4 of a turn. Retighten the plug as soon as water and sediment deposits have drained out

Turn key in main switch to the right to the first switch position so that the fuel transfer pump is operating. Keep the pump running for approx. 40 seconds

If water was present in fuel filter, use a 1/2-inch square-section key to loosen drain plug (D) under the fuel tank by one turn. After draining off any water and sediment deposits, retighten drain plug until hand-tight
