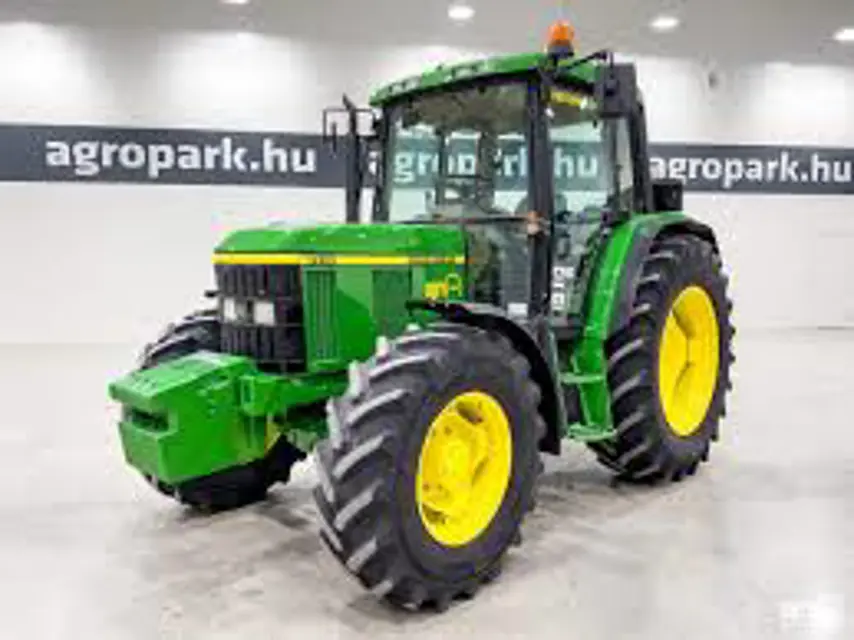

John Deere Tractor 6410

Create an account to install this asset package.

Maintenance Plans for John Deere Tractor Model 6410

Integrate maintenance plans directly into your work orders in MaintainX.

100 Hourly Maintenance

Service - Every 250 Hours

Drain and refill with fresh oil

Replace filter element with a John Deere element

Tighten attaching bolts; check hitch functions correctly

Service - Every 500 Hours

Check connections for leaks

Service - Every 750 Hours

Replace filter element

Service - Every 1500 Hours

Run this procedure

500 Hourly Maintenance

Replacing Transmission/Hydraulic System Filter Element (Tractors with AutoPowr)

1. Unscrew filter element.

2. Coat sealing rings of new filter element with grease and screw in filter element.

Use original John Deere filter elements only!

Changing the Fuel Filter

1. Unfasten filter retaining ring (A) and remove filter (B). Seal old filter with cover of the new one.

2. Remove water trap and install it on new filter.

3. On tractors with Bosch VP44 injection pump, also replace second filter (C).

4. Attach new filter. The marks on the filter must be aligned with those on the housing.

Run this procedure

250 Hourly Maintenance

Changing Engine Oil

Drain oil with engine shut off, but with engine oil still warm.

Remove drain screw (A).

While crankcase is draining, replace filter element.

Re-install drain screw and tighten to 70 Nem (50 Ib-ft) (use new seal ring).

Fill crankcase with fresh oil of proper viscosity at filler neck (B). With filter, capacity is approx. 12 liters (3.2 U.S. gal.).

Run engine for a short time and check for leaks at filter base and drain screw.

Shut off engine.

Wait 15 minutes then recheck oil level. Oil should be up to the "XXX" marks on the dipstick. If necessary, top up with oil.

Run this procedure

Yearly Maintenance

Checking Seat Belt

Replace entire seat belt if mounting hardware, buckle, belt or retractor show signs of damage.

Inspect seat belt and mounting hardware at least once a year. Look for signs of loose hardware or belt damage, such as cuts, fraying, extreme or unusual wear, discoloration, or abrasion. Replace only with replacement parts approved for your machine. See your John Deere dealer.;

Run this procedure

1000 Hourly Maintenance

Changing Transmission/Hydraulic Oil (Tractors with AutoPowr)

Start engine and operate several hydraulic functions to heat up oil.

Park tractor so that it is level. Lower draft links and front-mounted implements.

Turn off engine and remove key.

Apply handbrake (transmission in "P").

Remove drain screws (A).

Replace transmission/hydraulic oil filter element (B).

Add transmission/hydraulic oil to the transmission case.

Run engine briefly and operate hydraulic functions. Shut off the engine.

Run this procedure
