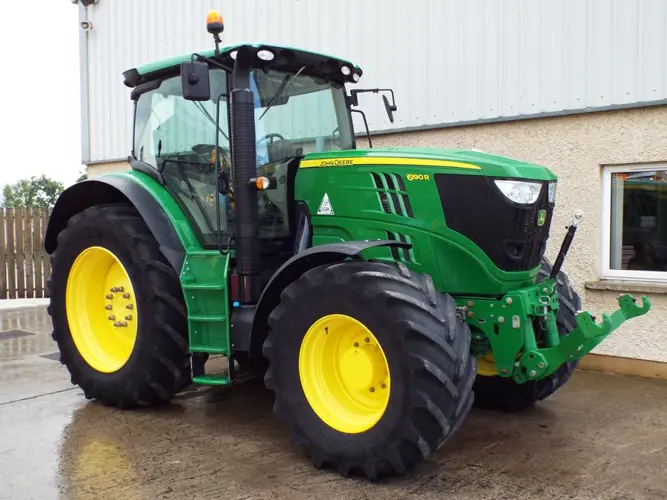

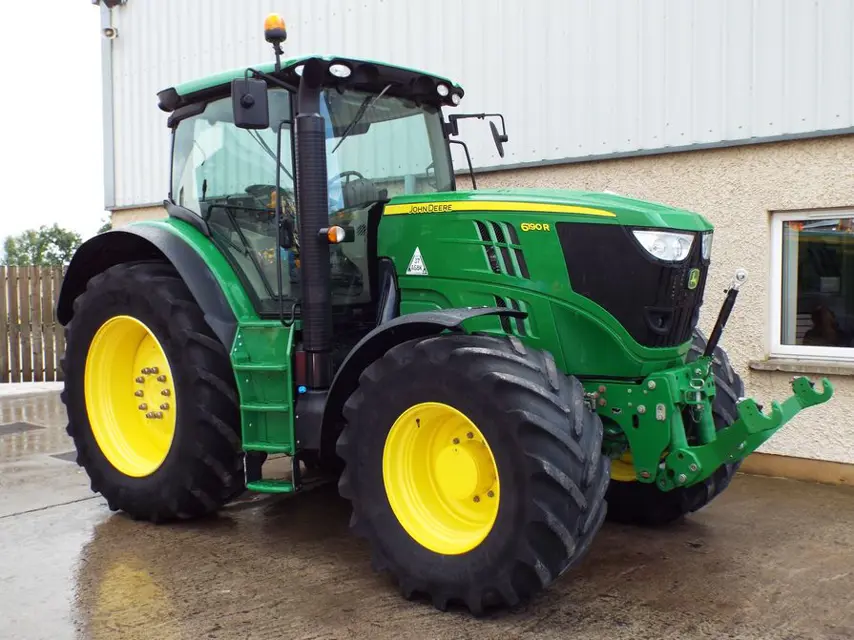

John Deere Tractor 6190R

All lights (including headlights) are functioning properly

Drain water and sediment from fuel filter

Remove trash from area surrounding the engine

Clean the radiator and condenser, fins and screens

Check the transmission/hydraulic system oil level

Check the level of oil in the engine

Lubricate lift links and rockshaft

Hydraulic system - Change hydraulic oil filter

Coat sealing rings of new filter elements with grease and screw in filter elements

Use original John Deere filter elements only!

Run the engine briefly and operate several hydraulic functions. Shut off engine.

Wait for 10 to 15 minutes before checking the oil level. It must be between the marks on the sight-glass. If not, correct oil level.

Transmission - Change transmission oil filter

Front-wheel drive axle - Final drives and disk brake, oil change

Turn wheel until drain screw (A) is at the bottom. Remove drain screw and drain oil into a suitable container.

Check that all accessible ground cables are secure

Engine - Check drive belt for wear

Engine - Change engine oil filter

Drain oil with engine shut off, but with engine oil still warm.

Fuel system - Change fuel filter

Always change the two filters at the same time.

Have brake system bled and checked by a John Deere™ dealer

Lubricate the draft link bearings (if equipped)

Inspect seat belt for damage and ensure proper working order

Use coolant test strips to check engine coolant

Engine - Check drive belt for wear (or every 500 hours, whichever occurs first)

Change engine oil (or every 500 hours, whichever occurs first)

Front loader - Mounting frame, check torques of attaching screws (or every 500 hours, whichever occurs first)

Change activated carbon filters of cab, if equipped (or every 500 hours, whichever occurs first)

Sign off on the yearly maintenance

Cooling system - Have the viscous fan checked by your John Deere™ dealer

Cab - Have accumulator of cab suspension checked by your John Deere™ dealer

Engine - Have glow plugs checked by your John Deere™ dealer

Engine - Have valves adjusted by your John Deere™ dealer

Front-wheel drive axle - Have accumulator of TLS changed by your John Deere™ dealer

Sign off on the 1000 Hourly Maintenance
