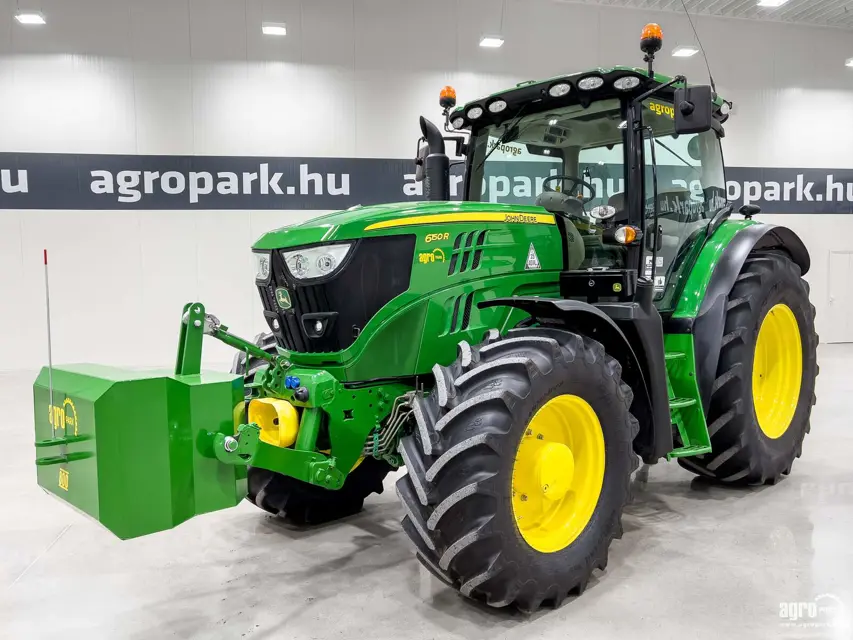

John Deere Tractor 6150R

Glow plugs checked by John Deere™ dealer

Valves adjusted by John Deere™ dealer (3000 Hourly Maintenance)

Air cleaner, change the secondary element (no later than at every fourth change of the primary element or every 5 years) (4500 Hourly Maintenance)

Front-wheel drive axle Maintenance

Have accumulator of TLS changed by your John Deere™ dealer (10000 Hourly Maintenance)

Have accumulator of cab suspension changed by your John Deere™ dealer (10000 Hourly Maintenance)

Sign off on the 2000 Hourly Maintenance

Hydraulic system - Change hydraulic oil filter

Coat sealing rings of new filter elements with grease and screw in filter elements

Use original John Deere filter elements only!

Run the engine briefly and operate several hydraulic functions. Shut off engine.

Wait for 10 to 15 minutes before checking the oil level. It must be between the marks on the sight-glass. If not, correct oil level.

Transmission - Change transmission oil filter

Front-wheel drive axle - Final drives and disk brake, oil change

Turn wheel until drain screw (A) is at the bottom. Remove drain screw and drain oil into a suitable container.

Accumulator on TLS front-wheel drive axle

Nitrogen pressure checked by a John Deere™ dealer?

Front axle without front-wheel drive

Clean wheel hubs and apply new grease?

Replace filter on crankcase vent (oil separator)?

Transmission/hydraulic system - Steps

Cooling system - Change the coolant (if COOL-GARD™ II is used and annual check)

On tractors with cab, is the heater control turned as far as it will go to the right?

Is cap (A) unfastened and taken off?

Is a container placed under the drain to collect the coolant as it emerges?

Is drain plug (C) opened and coolant drained out?

Is drain plug (C) closed and tightened to the specified torque?

Fill the system up to the max. mark (B) with clean water

Is the engine run until it reaches operating temperature?

Access the diagnostic trouble codes, rectify fault and then delete the codes

Check the Neutral Start Circuit - AutoPowr™/ IVT™ Transmission

Check the Neutral Start Circuit - DirectDrive Transmission

PTO actuation - Check safety device

Lights - Check settings of headlights

Load center - Visual inspection, and clean

Fuel system - Drain water and sediment from fuel tank

Front axle without front-wheel drive - Tighten screws
