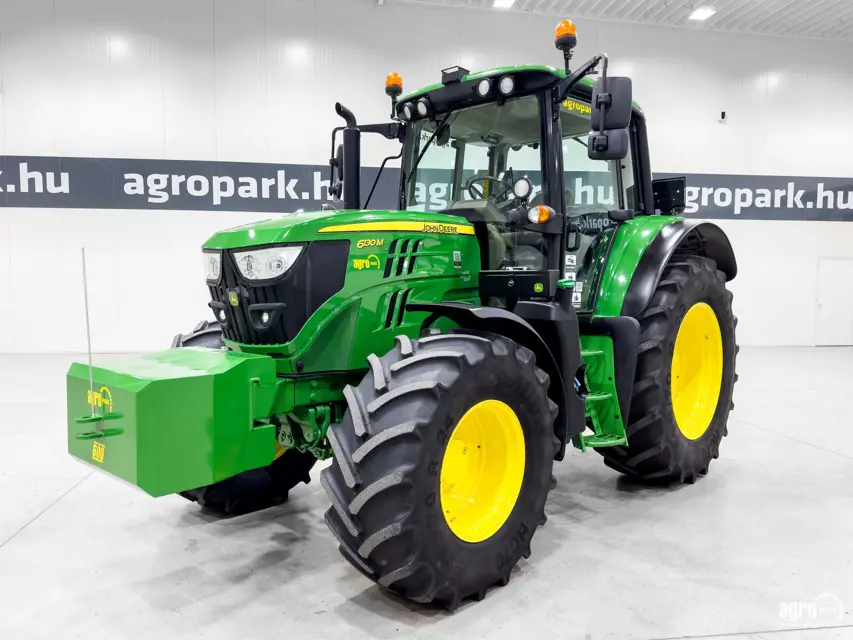

John Deere Tractor 6130M

Retrieve the diagnostic trouble codes

Delete the diagnostic trouble codes

Check that all lights and headlights are functioning properly

Check torques of fixing screws on Cab support

Check torque on attaching screws on Drawbar

Check torque on attaching screws on Height-adjustable trailer hitch

Check torques of attaching screws on Trailer hitch

Check torque on attaching screws on Pick-up hitch

Inspect seat belt for damage and ensure proper working order

Use coolant test strips to check engine coolant

Engine - Check drive belt for wear (or every 500 hours, whichever occurs first)

Change engine oil (or every 500 hours, whichever occurs first)

Front loader mounting frame - Check torques of fixing screws (see operator's manual and installation instructions of the front loader)

Change activated carbon filters of cab, if equipped (or every 500 hours, whichever occurs first)

Engine - Air cleaner, change the primary element (whenever the yellow Caution light flashes and corresponding information is displayed, or every 1500 hours) (2 yearly)

Air brake system - Change the air-drier cartridge (an earlier change may be necessary if condensed water drains out when checking compressed air tank, or every 1500 hours) (2 yearly)

Check that all accessible ground cables are secure

Engine - Check drive belt for wear (rubbing)

Engine - Change engine oil filter

While crankcase is draining, replace filter element

Re-install oil drain screw and tighten to 50 N.m (37 Ib-ft). Use a new seal ring

Add fresh oil of proper viscosity at filler neck (B). See the Fuel, Lubricants, Hydraulic Oil and Coolant section

Use dipstick (C) to check the oil level. Oil level must be in the upper part of the hatched area on the dipstick. Fill to proper level, if necessary

Glow plugs checked by John Deere™ dealer

Valves adjusted by John Deere™ dealer (3000 Hourly)

Secondary element of air cleaner changed (no later than at every fourth change of the primary element or every 5 years) (4500 Hourly)

Coolant changed (if COOL-GARD™ II is used and coolant is checked annually)(6000 Hourly)

Front-wheel Drive Axle Maintenance

Accumulator of TLS™ changed by your John Deere™ dealer (10000 Hourly)

Retrieve the diagnostic trouble codes, rectify errors, and then delete the diagnostic trouble codes

Tractors with SyncroPlus™ transmission: Check if the starting motor does not turn over in all gears

Tractors with PowrReverser™ transmission: Check if the starting motor does not turn over in all travel directions

Tractors with PowrQuad™ transmission: Check if the starting motor does not turn over in both 'forward' and 'reverse' positions

PTO actuation - Check safety circuit

Lights - Check settings of headlights

Load center - Visually inspect and clean

Fuel system - Drain water and sediment from fuel tank
