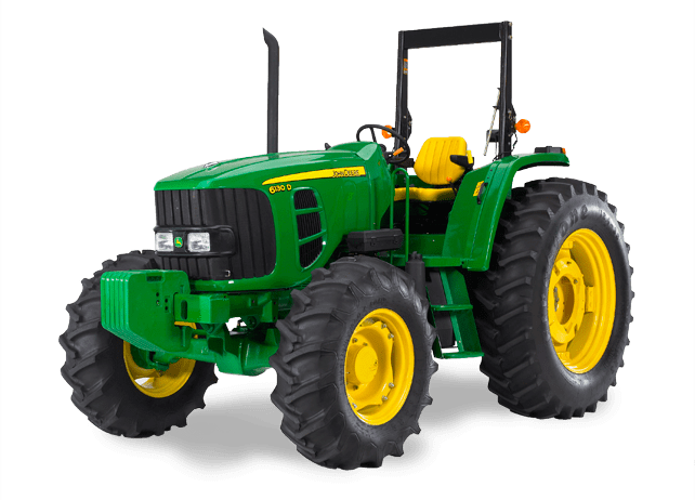

The John Deere Tractor 6130D is a robust agricultural machine designed for efficiency and reliability in various farming tasks. This versatile tractor model offers powerful performance and is equipped with advanced features to enhance productivity on the field. Ideal for both small and large-scale operations, it ensures optimal results in diverse agricultural applications.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for John Deere Tractor 6130D

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

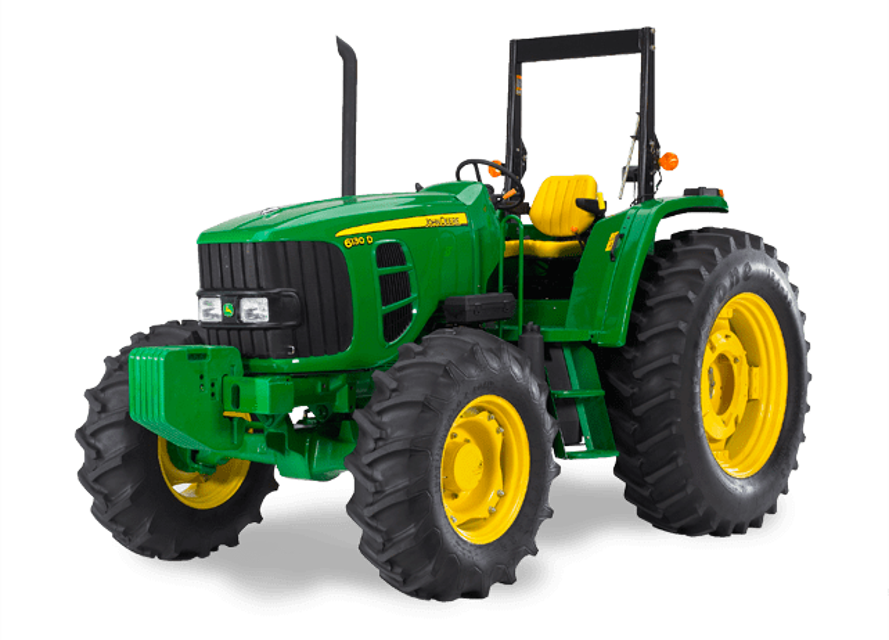

John Deere Tractor 6130D

Create an account to install this asset package.

Maintenance Plans for John Deere Tractor Model 6130D

Integrate maintenance plans directly into your work orders in MaintainX.

100 Hourly Maintenance

Transmission-hydraulic oil filter replaced?

Engine oil and filter changed?

MFWD axle and wheel hub oil changed?

Sign off on the 100 Hourly Maintenance

Run this procedure

250 Hourly Maintenance

Inspect engine air intake filters

Clean primary element when indicator on instrument panel illuminates or every 250 hours

Check rubber seal around filter element for cracks and holes

Secondary filter element (B) should only be removed when being replaced

Reinstall primary element with rubber seal first (arrows on label pointing into filter housing)

Check oil level in MFWD axle and wheel hubs

Inspect alternator/fan belt

Lubricate 3-point hitch

Inspect and clean fuel tank filler cap

Run this procedure

500 Hourly Maintenance

Operate engine to warm oil

Park tractor on level ground and SHUT OFF engine. Remove key

Remove oil drain plug (A) and drain oil

Open hood

Remove engine oil filter (B)

Apply a film of oil on new oil filter gasket and install new filter. Hand-tighten plus 1/2 turn

Install drain plug (A)

Add oil to filler (C)

Start engine and inspect drain plug (A) and filter (B) for leaks

Run this procedure

1000 Hourly Maintenance

Move rockshaft lever full forward to lower hitch all the way down

Remove drain plugs (A-E)

Replace transmission-hydraulic oil filter

Install all plugs

Remove cap (B) and fill system with oil as specified in Fuels, Lubricants and Coolant section

Check oil level at sight glass (A) after filling

Install filler cap

Start engine and operate for five minutes

Shut off engine and check oil level. Add oil if necessary

Run this procedure

2000 Hourly / 2 Yearly Maintenance

Drain, flush and refill engine cooling system

Adjust engine valve clearance

Enter the engine's hour meter reading

If engine's hour meter reading is 5000 hours or more, or if it has been 5 years since the last thermostat test or replacement, proceed with the next step

Test or replace thermostat

Run this procedure
