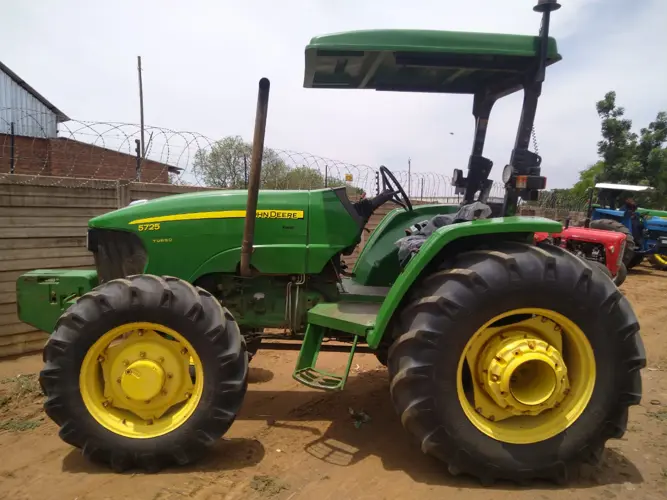

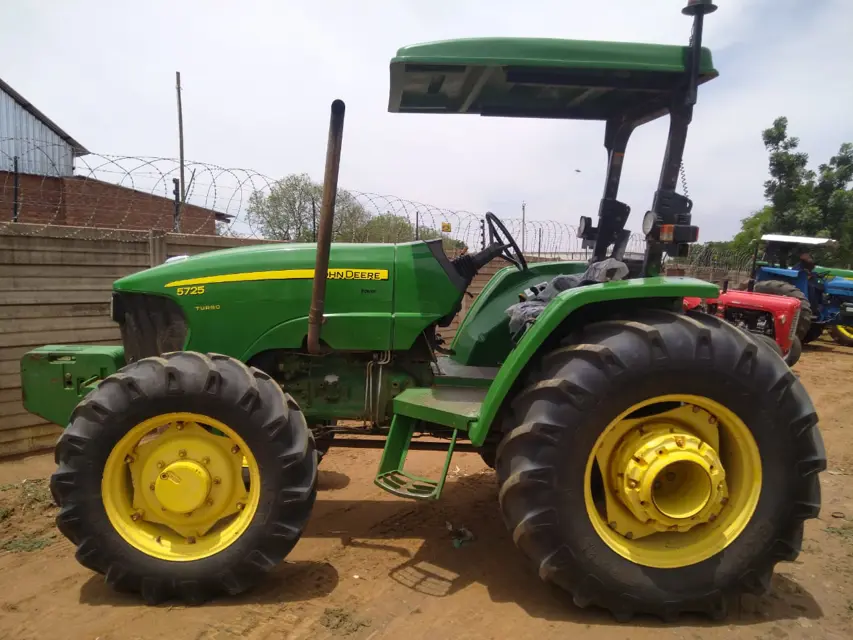

The John Deere Tractor 5725HC is a robust agricultural machine designed for efficiency and durability. This versatile tractor excels in various farming applications, providing reliable performance and ease of maintenance for operators. With its powerful engine and advanced features, the 5725HC is an essential asset for modern farming operations.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

John Deere Tractor 5725HC

Create an account to install this asset package.

Maintenance Plans for John Deere Tractor Model 5725HC

Integrate maintenance plans directly into your work orders in MaintainX.

1000 Hourly / Yearly Maintenance

Replace Primary and Secondary Air Filter Elements

Open hood and remove right-side grill panel

Remove air cleaner retaining strap (A)

Release three air cleaner cover retaining clips (B) and remove air cleaner cover (C)

Remove primary (D) and secondary (E) elements

Install new secondary element

Before you install primary element, clean the inside of air cleaner housing and unloader valve with a damp cloth

Install new primary element

Install air cleaner cover

Run this procedure

100 Hourly Maintenance

Engine oil and filter changed?

Transmission/hydraulic filter replaced?

Planetary drive oil changed?

MFWD axle oil changed?

Sign off on the 100 hourly maintenance

Run this procedure

1000 Hourly Maintenance

Change primary and secondary air filter elements.

Check unloader valve condition.

Change transmission/hydraulic oil and Filter.

1. Lower rockshaft to remove trapped oil.

2. Remove drain plug from transmission case (A) and drain out oil.

3. If equipped with MFWD axle, also remove drain plug (B) in drop housing.

4. Replace filter (C) while changing oil. Apply a film of oil to new filter gasket and install new filter. Hand tighten only.

5. Refill system with transmission-hydraulic oil. (See Fuels, Lubricants and Coolant section).

6. Wait 5 minutes and check oil level at dipstick (D).

Run this procedure

As required Maintenance

Adjust hand throttle friction

Remove key switch panel

Adjust spring tension by loosening or tightening lock nut (A) until throttle lever movement is smooth throughout range of travel with only slight drag

Clean primary air filter element

Open hood (A)

Release three air cleaner cover retaining clips (B) and remove air cleaner cover (C)

Remove primary element (D)

Put primary element with the palm of your hand, NOT ON HARD SURFACE

If this does not remove dust, use compressed air under 207 kPa (2.1 bar) (30 psi). Direct air up and down the pleats, blowing from inside to outside. Be careful not to make a break in the element. Use element cleaning gun AR62377

Run this procedure

250 Hourly Maintenance

Change engine oil and filter

Inspect tractor for loose hardware

Change fuel filter

Check battery fluid level

Lubricate steering spindles (2WD)

Check planetary drive oil level (MFWD)

Park tractor on a level surface so that drain plug is at the highest position

Partially unscrew drain plug to release possible pressure

Move tractor until mark is parallel to the ground

Run this procedure
