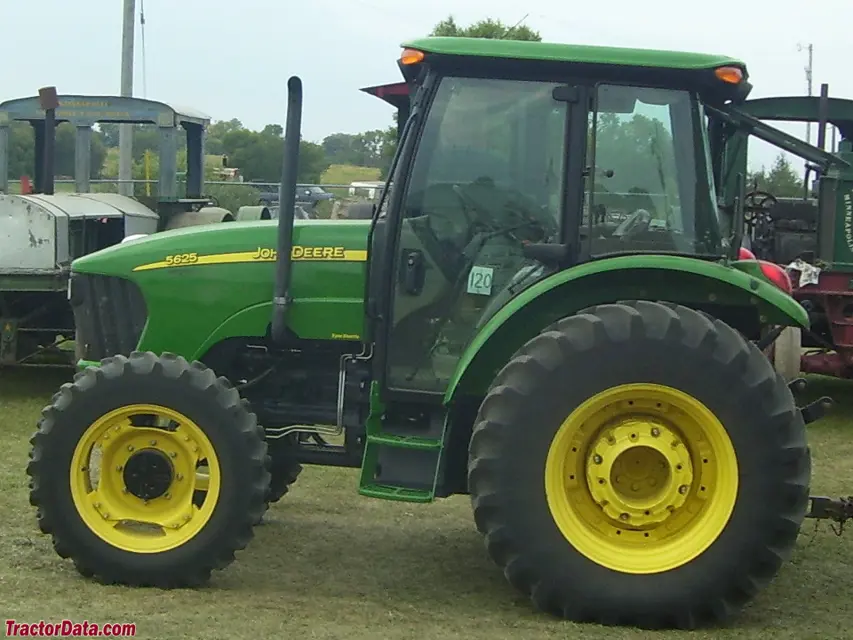

John Deere Tractor 5625HC

Is the level in coolant tank (B) above 'LOW'?

Is the oil level between two marks on dipstick (A)?

Fill fuel tank and add diesel conditioner

Is the fuel tank filled and diesel conditioner added?

Drain water and sediment from fuel tank

Is the water and sediment drained from fuel tank?

Inspect tractor for loose hardware

Lubricate steering spindles (2WD)

Check planetary drive oil level (MFWD)

Park tractor on a level surface so that drain plug is at the highest position

Partially unscrew drain plug to release possible pressure

Move tractor until mark is parallel to the ground

Flush Cooling System and Replace Thermostat

Drain coolant from radiator and engine block

Flush system with Radiator Cleaner

Replace transmission/hydraulic filter

Lubricate front axle wheel bearings (2WD)

Check air restriction indicator performance.

Repack front wheel bearings (2WD).

1. Jack up front end of Tractor.

2. Remove hub cap, cotter pin, and wheel nut.

Replace Primary and Secondary Air Filter Elements

Open hood and remove right-side grill panel

Remove air cleaner retaining strap (A)

Release three air cleaner cover retaining clips (B) and remove air cleaner cover (C)

Remove primary (D) and secondary (E) elements

Before you install primary element, clean the inside of air cleaner housing and unloader valve with a damp cloth
