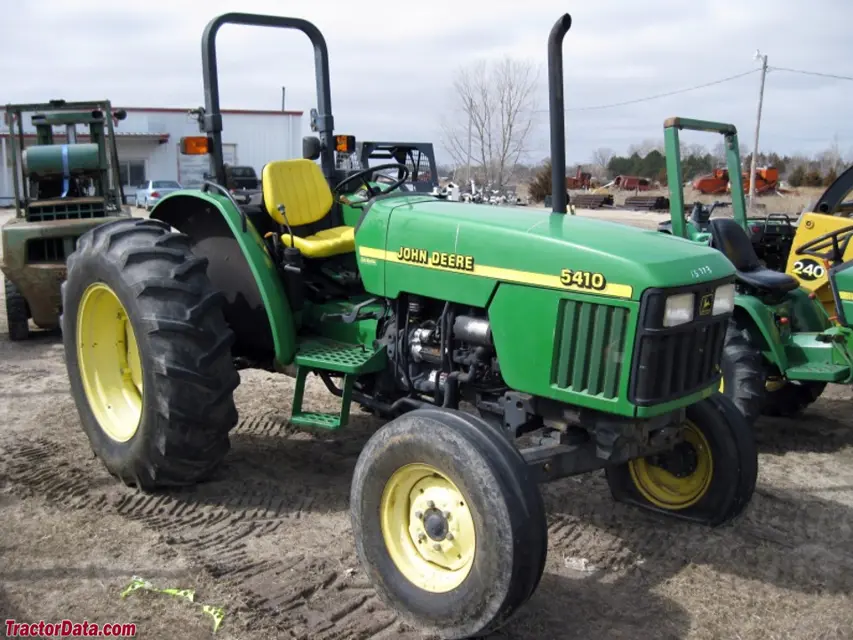

John Deere Tractor 5410

Create an account to install this asset package.

Maintenance Plans for John Deere Tractor Model 5410

Integrate maintenance plans directly into your work orders in MaintainX.

100 Hourly Maintenance

Replace transmission-hydraulic filter element

Remove filter (A). Apply a film of oil to new gasket and install new filter. Hand tighten plus 1/2 turn.

Run engine several seconds and recheck transmission-hydraulic oil level.

Add transmission fluid if required (See Fuels, Lubricants and Coolant section).

Change engine oil and filter

Run engine to heat oil. Stop engine.

Remove oil drain plug (A) and drain oil.

Replace engine oil filter (B) while changing oil. Apply a film of oil on the new oil filter gasket and install new filter. Hand tighten plus 1/2 turn.

Install drain plug.

Run this procedure

10 Hourly Maintenance

Wheel hardware tightened?

Refer to Wheels, Tyres, and Treads section for additional information.

Alternator/fan belt tension checked?

Air intake and cooling system hose clamps tightened?

Perform 50 Hours Service

Sign off on the 10 Hourly Maintenance

Run this procedure

50 Hourly Maintenance

Warning: This maintenance check requires trained personnel with PPE!

Transmission-hydraulic system oil level check

MFWD axle hub oil level check

Battery cleaning and check

Tire inspection

Front axle pivot pin lubrication

MFWD front pivot lubrication

Steering spindles lubrication

Tractor inspection for loose nuts and bolts

Run this procedure

250 Hourly Maintenance

Service air cleaner

Describe the condition of the primary element

Replace primary element

Replace secondary element

Change engine oil and filter

Clean and check battery

Inspect and adjust alternator/fan belt

Enter the belt deflection in mm

Adjust belt tension

Run this procedure

10 Hourly Maintenance

Park tractor on level ground, put range shift lever in neutral (N), set brakes and pull fuel shutoff knob to stop engine

Check engine oil level

Pull out dipstick (A). Oil level should be between two marks on dipstick. DO NOT operate engine when oil level is below low mark on dipstick.

If level is low, add oil through oil filler hole (B) until even with upper mark. DO NOT overfill.

Check coolant level in coolant recovery tank (A).

Coolant level shall be up to "Cold Mark". If it is below "Cold Mark", add coolant to that mark only.

Separate drain plug is not provided on the fuel tank. To drain water and sediment from fuel tank, open return line at joint (A).Drain the fuel till water and / or sediment comes out

Put range shift lever in neutral (N), set brakes and pull fuel shutoff knob to stop engine.

Open fuel filter drain Plug (A) to bleed accumulated moisture and sediment from filter into container. Tighten drain plug when clear fuel runs from drain. Repeat this step for second filter

Run this procedure
