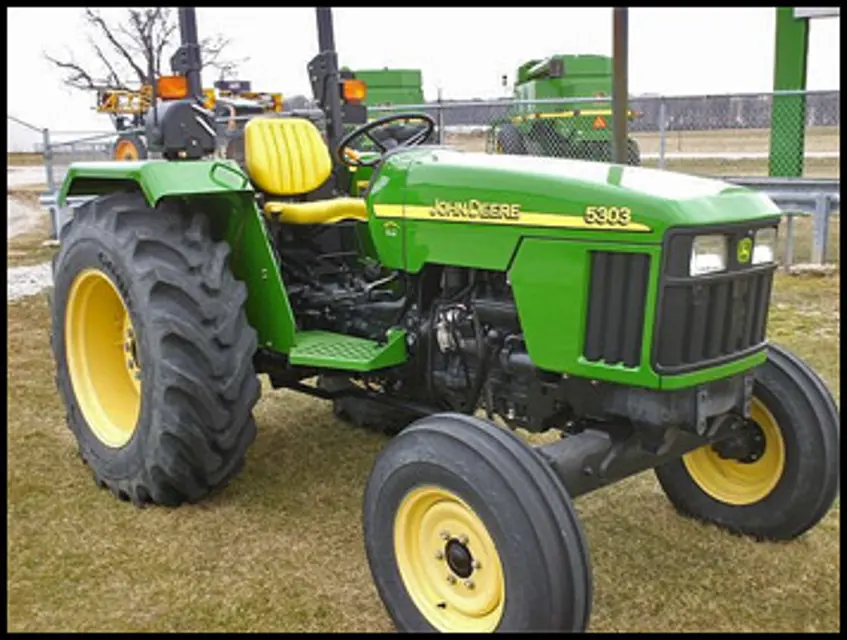

The John Deere Tractor 5303 is a robust agricultural machine designed for efficiency and durability. Ideal for various farming tasks, this tractor combines powerful performance with user-friendly features, ensuring reliable operation in demanding environments. Maintain optimal performance with regular servicing and quality spare parts.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for John Deere Tractor 5303

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

John Deere Tractor 5303

Create an account to install this asset package.

Maintenance Plans for John Deere Tractor Model 5303

Integrate maintenance plans directly into your work orders in MaintainX.

600 Hourly Maintenance

Change oil in MFWD axle housing

Tractor positioned on level ground

Drain/fill plugs (C and D) removed

Wheel hubs drained

Wheels rotated so oil level mark (B) is parallel to the ground

Drain plug (D) installed

Differential housing filled with John Deere HY-GARD Gear Lubricant

Clean engine crankcase vent tube

Engine crankcase vent tube cleaned

Run this procedure

50 Hourly Maintenance

Wheel hardware tightened?

Alternator/fan belt tension checked?

Air intake and cooling system hose clamps tightened?

50 Hours Service performed?

Sign off on the 50 Hourly Maintenance

Run this procedure

100 Hourly Maintenance

Transmission-Hydraulic Filter Replacement

Remove filter (A). Apply a film of oil to new gasket and install new filter. Hand tighten plus 1/2 turn.

Run engine several seconds and recheck transmissionhydraulic oil level.

Add transmission fluid if required (See Fuels, Lubricants and Coolant section).

Engine Oil and Filter Change

Run engine to heat oil.

Remove oil drain plug (A) and drain oil.

Replace engine oil filter (B) while changing oil. Apply a film of oil on the new oil filter gasket and install new filter. Hand tighten plus 1/2 turn.

Install drain plug.

Run this procedure

As required Maintenance

Service air cleaner

Adjust throttle friction

Remove key switch panel.

Adjust spring tension by loosening or tightening lock nut (A) until throttle lever movement is smooth throughout range of travel with only slight drag.

Drain water and sediment from fuel tank and fuel filter

Run this procedure

1000 Hourly Maintenance

Change transmission-hydraulic oil and filter

Lower rockshaft to remove trapped oil

Remove drain plug (A) from transmission case and drain out oil

Dispose of waste oil properly

If equipped with MFWD axle, also remove drain plug (B) in drop housing

Replace filter (B) while changing oil

Apply a film of oil to new filter gasket and install new filter

Fill system with transmission-hydraulic oil

Check oil level at dipstick (D) after filling, and again after operating for five minutes
