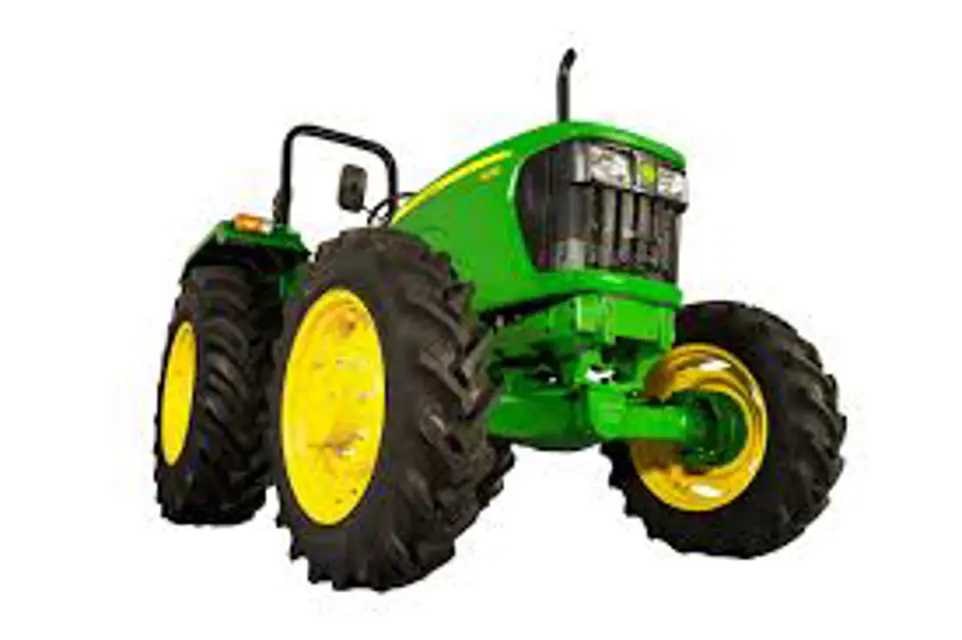

The John Deere Tractor 5210 is a robust and versatile agricultural machine designed for efficient farming operations. Known for its reliability and performance, this tractor model offers a range of features suitable for various tasks, making it an essential asset for modern agricultural practices.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for John Deere Tractor 5210

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

John Deere Tractor 5210

Create an account to install this asset package.

Maintenance Plans for John Deere Tractor Model 5210

Integrate maintenance plans directly into your work orders in MaintainX.

10 Hourly Maintenance

Perform daily or 10 hours service. (See Service Intervals in Lubrication and Maintenance section.)

Tighten wheel hardware. (See Wheels, Tires, and Treads section.)

Check engine oil level

Park tractor on level ground and pull out dipstick (A). Oil level should be between two marks on dipstick . DO NOT operate engine when oil level is below low mark on dipstick.

If level is low, add oil through oil filler hole (B) until even with upper mark. DO NOT over fill. Use seasonal viscosity grade oil. (See Fuels, Lubricants and Coolant section.)

Check coolant level

Check level in coolant tank (B).

If engine is cool and level is below "LOW" add coolant to recovery tank to bring to "LOW". (See Fuels, Lubricants and Coolant section.)

Drain water and sediment from fuel tank and fuel filter

Run this procedure

100 Hourly Maintenance

Replace transmission-hydraulic filter element

1. Remove filter (A). Apply a film of oil to new gasket and install new filter. Hand tighten plus 1/2 turn.

2. Run engine several seconds and recheck transmission-hydraulic oil level.

3. Add transmission-hydraulic oil if required (See Fuels, Lubricants and Coolant section).

Change engine oil and filter

1. Run engine to heat oil. Stop engine.

2. Remove oil drain plug (A) and drain oil.

3. Replace engine oil filter (B) while changing oil. Apply a film of oil on the new oil filter gasket and install new filter. Hand tighten plus 1/2 turn.

4. Install drain plug.

Run this procedure

50 Hourly Maintenance

Tighten wheel hardware

Check alternator/fan belt tension and tighten air intake and cooling system hose clamps

Check A/C compressor belt tension (cab)

Check transmission-hydraulic system oil level

Remove dipstick (A) and wipe it clean. Insert dipstick fully. Oil level should be between full mark and end of dipstick.

Add oil if level is low. (See Anti-Chatter Transmission/Hydraulic Oil in Fuels, Lubricants and Coolant section.)

Check MFWD axle hub oil level

Park tractor so that oil fill mark (A) on MFWD hub is level with the ground. Remove filler plug (B). Oil level should be even with bottom of the filler plug hole.

Remove plug (C) to check oil level in axle housing. Oil level should be even with bottom of hole.

Run this procedure

500 Hourly Maintenance

Fuel Filter Replacement

Fuel shut-off closed

Retaining ring and filter removed

New filter installed with retaining ring hand tight

Fuel shut-off opened and air bled from filter

Sign off on the fuel filter replacement

Run this procedure

As required Maintenance

Service air cleaner
