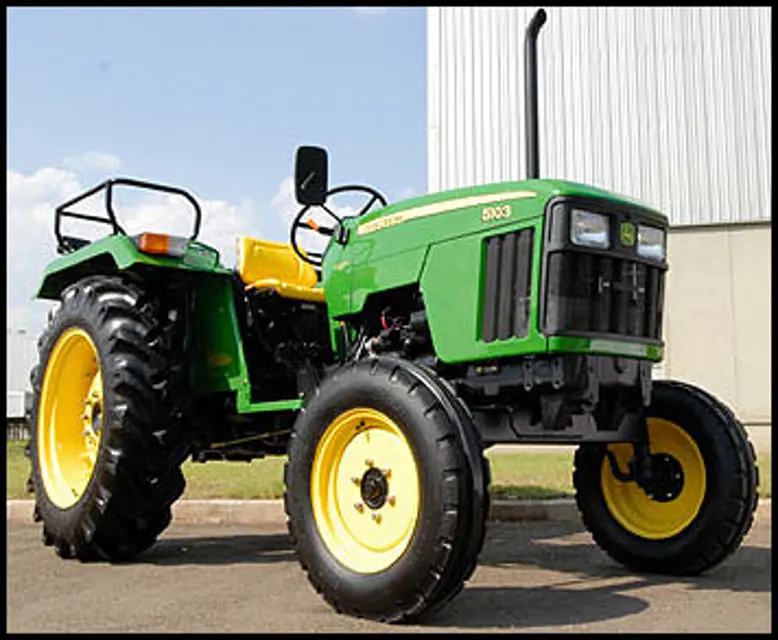

The John Deere Tractor 5103 is a versatile and reliable agricultural machine designed for various farming tasks. Known for its robust performance and ease of maintenance, this tractor is ideal for both small and large-scale operations, ensuring efficiency and productivity in the field.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for John Deere Tractor 5103

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

John Deere Tractor 5103

Create an account to install this asset package.

Maintenance Plans for John Deere Tractor Model 5103

Integrate maintenance plans directly into your work orders in MaintainX.

250 Hourly Maintenance

• Service air cleaner

• Change engine oil and filter

• Replace transmission-hydraulic filter

• Clean and check battery

• Inspect and adjust alternator/fan belt

• Lubricate 3-point hitch

• Check neutral start system

• Check clutch pedal free travel

Adjusting PTO Clutch Operating Rod

Run this procedure

Yearly Maintenance

Change engine oil and filter

Replace air cleaner elements

Open hood and remove side screen

Release clips (A)

Remove cover (B)

Remove primary element (C)

Clean out any dirt in canister taking care not to damage the secondary filter element

Removal of the secondary element (D) is similar to removal of the primary element

Install secondary element, primary element and cover

Run this procedure

600 Hourly Maintenance

Change oil in MFWD axle housing

Tractor positioned on level ground

Drain/fill plugs (C and D) removed

Oil drained

Wheels rotated so oil level mark (B) is parallel to the ground

Drain plug (D) installed

Differential housing filled with John Deere HY-GARD Gear Lubricant

Clean engine crankcase vent tube

Repack front wheel bearings (Adjustable front axle)

Run this procedure

As required Maintenance

Service air cleaner

Adjust throttle friction

Remove key switch panel.

Adjust spring tension by loosening or tightening lock nut (A) until throttle lever movement is smooth throughout range of travel with only slight drag.

Drain water and sediment from fuel tank and fuel filter

Run this procedure

500 Hourly Maintenance

Fuel Filter Replacement

Fuel shut-off closed

Retaining ring and filter removed

New filter installed with retaining ring hand tight

Fuel shut-off opened and air bled from filter

Sign off on the fuel filter replacement

Run this procedure
