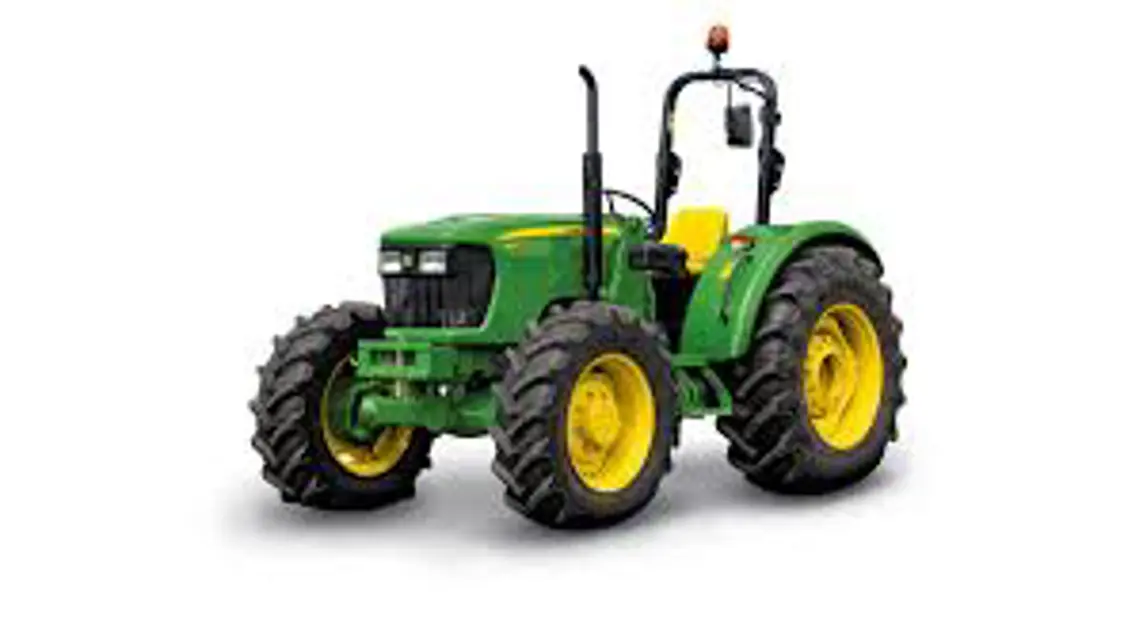

John Deere Tractor 5065E

Transmission-hydraulic oil filter replaced?

Engine break-in oil and filter changed?

Hose clamps on the air intake system inspected?

Hose clamps on the coolant system inspected?

Sign off on the 100 hourly maintenance

Drain water and sediment from fuel tank and fuel filter

Lubricate front axle pivot pins

Check oil level in MFWD axle and wheel hubs

Replace transmission-hydraulic filter

Change transmission-hydraulic oil and filter

Lower rockshaft to remove trapped oil

Remove drain plug (A) from transmission case and drain out oil

Remove drain plug (B) in drop housing (if equipped with MFWD axle)

Replace oil filter (C) while changing oil

Fill system with transmission-hydraulic oil

Check oil level at dipstick (D) or sight glass (if equipped) after filling, and again after operating for five minutes

Clean transmission-hydraulic pickup screen

Clean engine crankcase vent tube (OCV)

1. Locate crankcase vent port on top right-hand side of engine.

2. Remove crankcase vent tube (A) from engine.

3. Wash in solvent or blow clean with compressed air. Inspect tube for damage, replace if necessary.

4. Install vent tube. Make sure vent tube is not kinked or pinched.

Check and tighten all hoses and hose clamps

Change MFWD axle and wheel hub oil

Check Secondary brake (if equipped)
