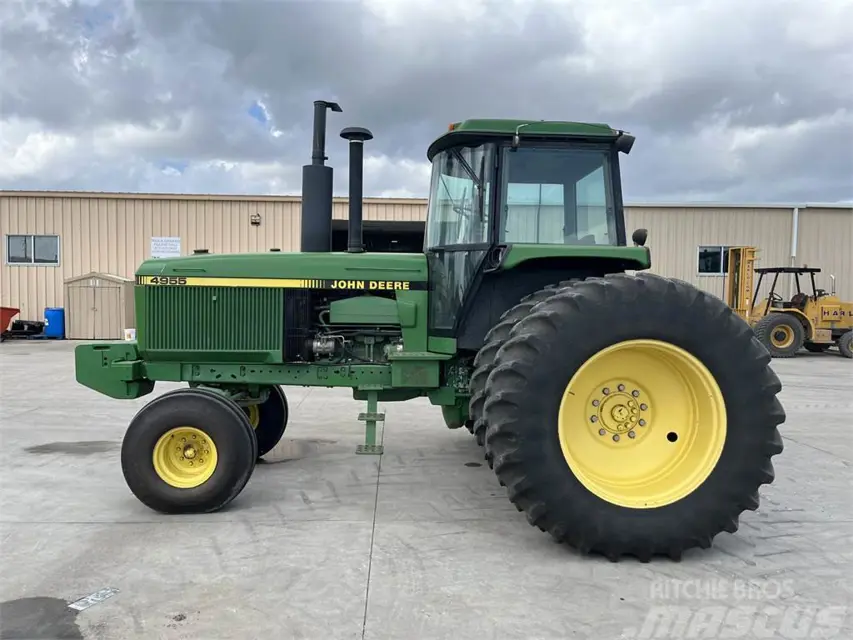

John Deere Tractor 4955
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for John Deere Tractor 4955
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
John Deere Tractor 4955
Create an account to install this asset package.
Maintenance Plans for John Deere Tractor Model 4955
Integrate maintenance plans directly into your work orders in MaintainX.
1500 Hourly Maintenance
• Change transmission-hydraulic oil
• Clean charge pump suction screen
• Change MFWD hub and axle housing lubricant
• Check fuel injection nozzles;
250 Hourly Maintenance
Change engine oil and filter
Check MFWD drive axle housing and wheel hub oil level
Service batteries
Check tension of alternator and compressor belts
Wash transmission-hydraulic oil filler cap breather filter
Inspect for loose bolts
Check neutral start system
Check brake accumulator
Inspect fire extinguisher
As required Maintenance
• Replace transmission and hydraulic filter elements
• Replace fuel filter element and water separator element
• Service prefilter
1. Shut off fuel at fuel tank.
2. Verify ""IN"" mark (B) on end of filter or mark direction of fuel flow.
3. Remove filter from lines.
4. Back flush filter with compressed air. If unrestricted flow is obtained reinstall filter in same direction as removed. (""IN"" mark on filter should be towards fuel tank.)
• Service air cleaner
• Check engine compartment
Yearly Maintenance
• Replace transmission and hydraulic filter elements
• Replace primary and secondary air cleaner elements
• Drain, flush, and refill cooling system
• Replace thermostats;
750 Hourly Maintenance
Lubricate rear axle bearings
Check air intake system
Check engine idle speeds
Adjust engine valve clearance
Have your John Deere dealer check nitrogen precharge of shift accumulators
Sign off on the 750 Hourly Maintenance
