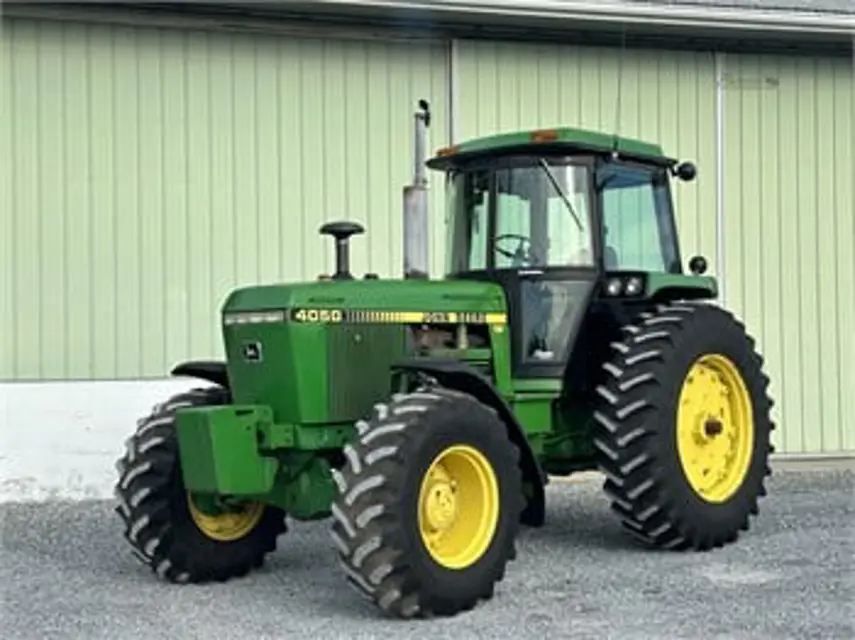

John Deere Tractor 4050

1. CHANGE ENGINE OIL AND FILTER.

Run engine to warm oil. Stop engine. Remove crankcase drain plug (A) and filter drain plug (B). Replace plugs after oil drains out.

Replace engine oil filer (C) and packing. Remove old packing and clean filter mounting pad. Oil new packing and install new element. Hand tighten only. Crankcase capacity with filter is 18 qt. (17.0 L).

Refill crankcase with seasonal viscosity grade oil recommended in the Fuels and Lubricants section.

Start engine and check for leaks.

Stop engine. Recheck oil level.

2. CHECK MFWD DRIVE AXLE HOUSING AND WHEEL HUB OIL LEVEL.

Place vehicle on level ground. Turn wheel hubs until the words ""OIL LEVEL"" are horizontal. Remove plug (A). Oil level should be just below plug hole. If low, add Gear Lubricant through plug hole (B).

Check axle housing oil level (C). Oil level should be just below plug hole. If low add through same hole. Use lubricant specified under Gear Lubricant in Fuel and Lubricant section.

With tractor parked on level ground, remove dipstick (A) and check oil level. Oil level should be between two marks on dipstick. If needed, add oil recommended in Fuels and Lubricants section in filler hole (B).

Remove radiator cap (A) and check coolant level. Coolant level should be approximately 3-3/4 in. (95 mm) below top of filler neck.

If coolant level is low, check for any signs of leakage and repair if necessary. Check all hose clamps for tightness.

Add 50 per cent soft water ethylene glycol type, antifreeze mixture specified in Service section.

3. CHECK TRANSMISSION-HYDRAULIC OIL LEVEL.

With tractor on level ground, remove dipstick (A). If oil level is below the ""safe"" zone, remove filler cap (B) and add hydraulic oil under Transmission-Hydraulic Oils specified in Fuels and Lubricants section.

Follow the steps below for the 2 Yearly Maintenance.

Drain, flush, and refill cooling system as instructed in Service section.

Upload a photo of the cleaned radiator and oil-cleaner-condenser with straightened fins.

Upload a photo of the replaced thermostats.

Sign off on the 2 Yearly Maintenance

1. REPLACE TRANSMISSION FILTER ELEMENT (C).

Loosen retaining screw to drain housing. Carefully, remove filter cover and filter element. Thoroughly wash filter cover (D) with solvent and blow dry.

Inspect filter cover packing and replace if necessary.

Install packing (E) into housing (F).

Place element into cover and install.

2. REPLACE HYDRAULIC FILTER ELEMENT (C).

Loosen retaining screw to drain housing. Carefully remove filter cover and filter element. Thoroughly wash filter cover (D) with solvent and blow dry.

Inspect filter cover packing and replace if necessary.

Install packing (E) into housing (F).

Change engine oil and oil filter (A)

Change transmission filter (A) if filter change has not already been required by monitoring system

Replace hydraulic oil filter (B) if hydraulic functions are slow
