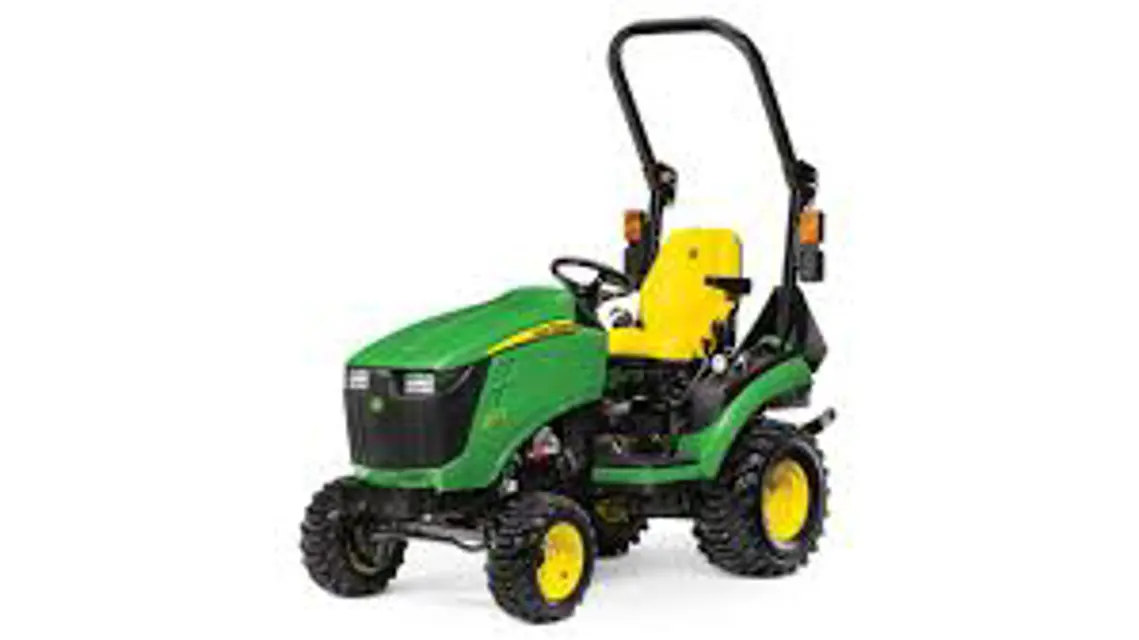

John Deere Tractor 1025R

Remove dipstick (A), at the right side of the engine. Wipe with a clean cloth.

Check oil level on dipstick. Oil level should be between levels (B) and (C) on dipstick.

Drain, Flush, and Refill Engine Cooling System

Slowly open radiator cap (A) to the first stop to release all pressure

Position a pan under the radiator drain tube (C)

Open the drain plug (B) and allow the coolant to drain from the system

Remove the drain plug (D) from the engine block and finish draining coolant

Drain, Flush, and Refill Engine Cooling System

Radiator cap opened to first stop to release pressure

Pan positioned under radiator drain tube

Drain plug opened and coolant drained from system

Drain plug removed from engine block and coolant finished draining

Service air filter element and hoses.

Service Primary Air Filter Element:

5. Pull out latch (A) from canister cover.

6. Twist the canister cover (B) to the unlock position and remove.

7. Remove and discard the primary element (C). Clean out any dirt in canister, taking care not to damage the secondary filter element. Replace with a new primary filter element.

Change engine oil and filter if less than 400 hours of operation.

3. Place drain pan under oil drain plug (A) located on under side of engine.

5. Wipe dirt from around oil filter (B).

6. Turn filter counterclockwise to remove.

7. Put a light coat of clean engine oil on gasket of new filter.
