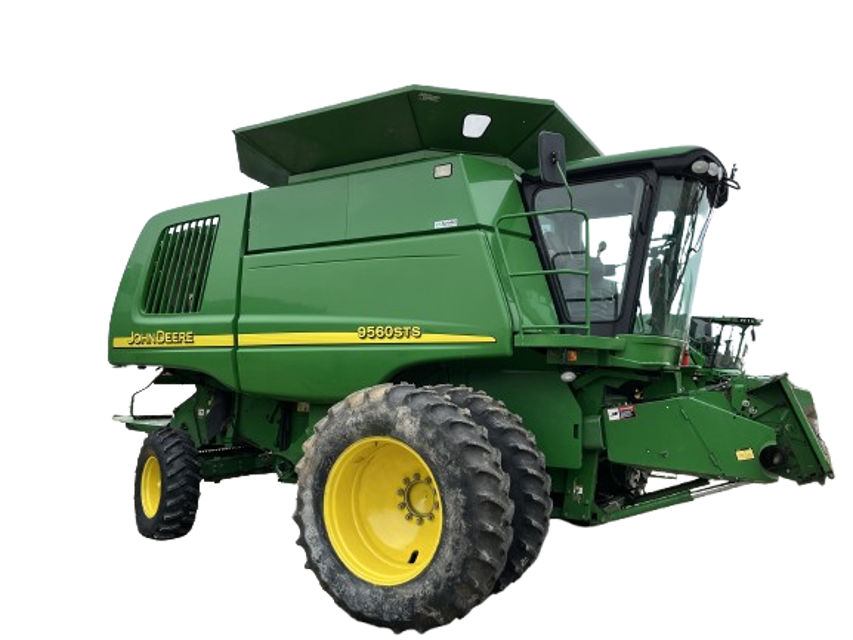

John Deere John Deere Combine Harvester 9560 STS 9560 STS

Engine air filter light stays ON?

If the engine air filter light stays ON, replace both Primary and Secondary Filters.

If engine hours are 400 or more, proceed with the following steps

Note: Replace all three filters at a time. (Hydrostatic Pump / Engine Gearcase / Main Hydraulic Filter)

Sign off on the 400 Hourly Combine Maintenance

Primary Engine Filter replaced?

Fuel Water Separator Filter replaced?

Cab Air Filter cleaned or replaced?

Note: Clean or replace Cab Air Filter every 50 hours and as required.

Cab Recirculation Air Filter cleaned or replaced?

Note: Clean or replace Cab Recirculation Air Filter every 200 hours and as required.

Note: Replace Engine Oil Filter every 250 hours.

Enter the oil level in the crankcase

Note: Fill crankcase with seasonal viscosity grade oil or Torq-Gard SupremeTM (250 hours change interval). If using Plus-50TM oil and a John Deere filter, the service interval can be extended by 50 percent. Example: 250 hours extends to 375 hours.

Note: Change oil every 100 hours if fuel contains more than 0.5 % sulfur.

Filter Water Separator replaced after first 50 hours?

Engine Oil Filter replaced after first 100 hours?

Crank-case filled with seasonal viscosity grade oil or Torq-Gard SupremeTM?

Sign off on the combine maintenance
