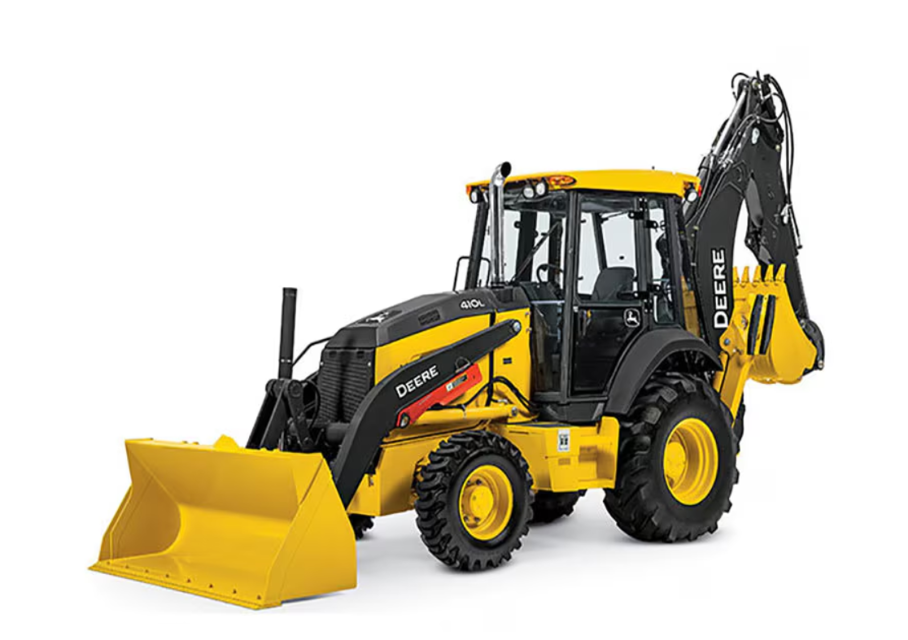

John Deere John Deere Backhoe Loader 410L 410L

Check hydraulic system oil level

Lubricate loader quick coupler (if equipped)

Lubricate backhoe boom, crowd cylinders, and pivots

Lubricate backhoe hydraulic coupler (if equipped)

Lubricate backhoe spring coupler (if equipped)

Lubricate stabilizer pivots and cylinder pins (310L, 310SL, 310SLHL, and 410L only)

Inspect cab fresh air and recirculation filter elements (if equipped)

Drain water and sediment from fuel filters

Check air conditioning system refrigerant charge and system oil charge (if equipped)

Check windshield washer fluid level (if equipped)

Lubricate non-powered front wheel bearings (if equipped)

Mechanical front wheel drive (MFWD) axle planetary housing oil level checked (if equipped)

Mechanical front wheel drive (MFWD) axle housing oil level checked (if equipped)

Mechanical front wheel drive (MFWD) drive shaft spline lubricated (if equipped)

Sign off on the 250 Hourly Maintenance

Check boom-to-dipperstick pin bolt torque

Drain water and sediment from fuel tank

Drain and refill engine oil and replace filter element

Replace primary fuel filter element

Replace final fuel filter element

Replace diesel exhaust fluid (DEF) tank breather filter

Replace diesel exhaust fluid (DEF) header suction baffle

Clean diesel exhaust fluid (DEF) tank

Drain and refill cooling system

Replace in-line diesel exhaust fluid (DEF) filter element

Sign off on the 4000 Hourly Maintenance
