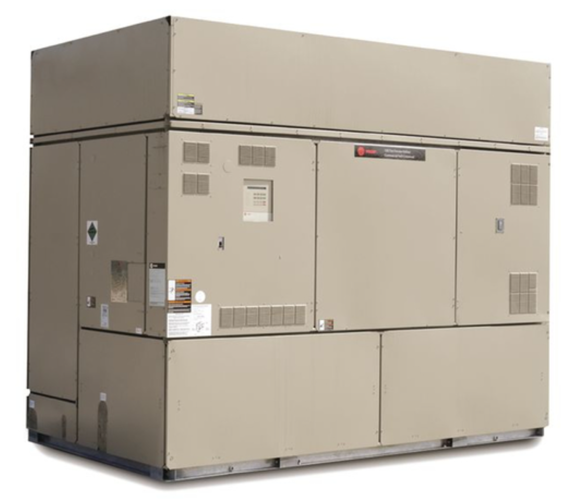

Trane Series R™ Helical Rotary Chiller RTWD130STD

Warning: This procedure requires trained personnel with PPE!

Name of the water treatment specialist consulted

Materials used in the external circulation system

Duration of the cleaning period

Safety precautions to be followed

Was the chemical cleaning followed by mechanical tube cleaning?

Sign off on the chemical cleaning

WARNING: Hazardous Voltage! Failure to disconnect power before servicing could result in death or serious injury. Disconnect all electric power, including remote disconnects before servicing. Follow proper lockout/ tagout procedures to ensure the power can not be inadvertently energized. Verify that no power is present with a voltmeter.

Shut down the chiller once each year to check the following:

Sign off on the yearly maintenance

Use a nondestructive tube test to inspect the condenser and evaporator tubes at 3-year intervals.

NOTE: It may be desirable to perform tube tests on these components at more frequent intervals, depending upon chiller application. This is especially true of critical process equipment.

Depending on chiller duty, contact a qualified service organization to determine when to conduct a complete examination of the unit to determine the condition of the compressor and internal components.

Nondestructive tube test passed?

Describe any issues found during the tube test

Was a complete examination of the unit conducted?

Describe the condition of the compressor and internal components

Sign off on the 3 Yearly Series R™ Helical Rotary Chiller Maintenance

CAUTION: Do not use untreated or improperly treated water, or equipment damage may occur.

Condenser tube fouling is indicated when the “approach” temperature (i.e., the difference between the refrigerant condensing temperature and the leaving condenser water temperature) is higher than predicted.

Standard water applications will operate with less than a 10°F approach. If the approach exceeds 10°F cleaning the condenser tubes is recommended.

NOTE: Glycol in the water system typically doubles the standard approach.

If the annual condenser tube inspection indicates that the tubes are fouled, 2 cleaning methods can be used to rid the tubes of contaminants.

WARNING: Heavy Objects! Failure to properly lift waterbox could result in death or serious injury.

WARNING: Straight Vertical Lift Required! Failure to properly lift waterbox in straight vertical lift could cause the eyebolts to break which could result in death or serious injury from object dropping.

Review mechanical room limitations and determine the safest method or methods of rigging and lifting the waterboxes.

Warning: This procedure requires trained personnel with PPE!

Run the unit fully unloaded for approximately 20 minutes.

Attach a 3/8 inch or 1/2 inch hose with a sight glass in the middle to the oil sump service valve (1/4 inch flare) and the oil separator service valve (1/4 inch flare).

Note: Using high pressure rated clear hose with appropriate fittings can help speed up the process.

After the unit is off line for 30 minutes, move the sight glass along the side of the oil sump.

Enter the oil level from the bottom of the oil sump.

Note: If oil levels are not between 3 inch and 5 inch, contact Trane service.

After the level is determined, close the service valves and remove the hose/sight glass assembly.
