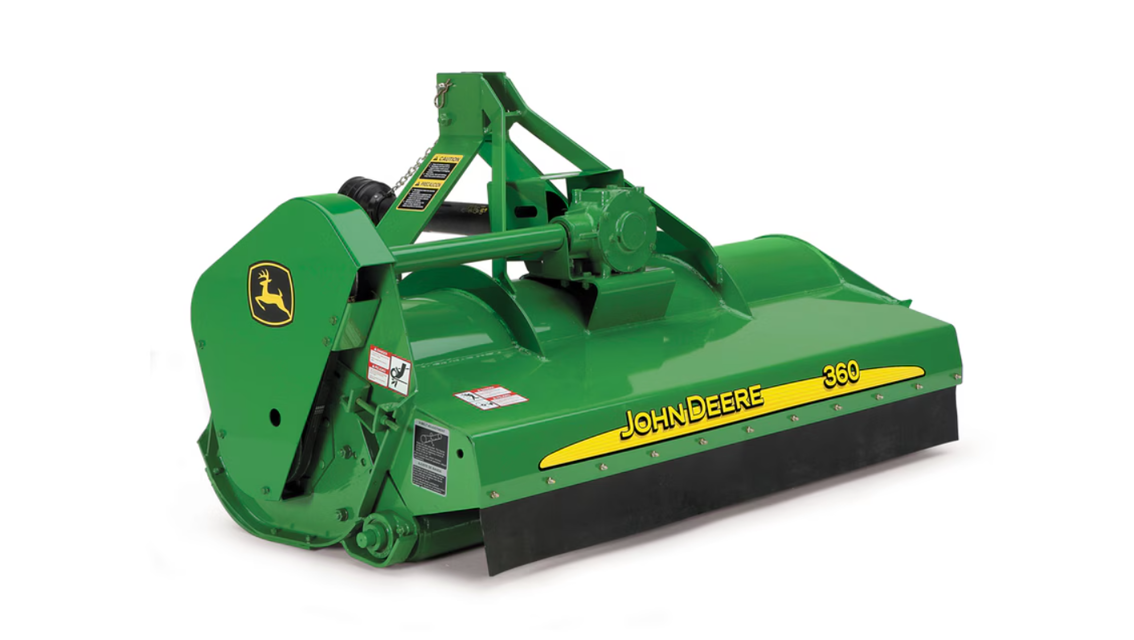

The John Deere Heavy-Duty Flail Mower 360 is a robust and efficient mowing solution designed for tough terrain. This model combines durability with advanced features, making it ideal for professional landscaping and agricultural applications. Regular maintenance ensures optimal performance and longevity of the equipment.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for John Deere Heavy-Duty Flail Mower 360

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

John Deere Heavy-Duty Flail Mower 360

Create an account to install this asset package.

Maintenance Plans for John Deere Heavy-Duty Flail Mower Model 360

Integrate maintenance plans directly into your work orders in MaintainX.

PTO Driveline and Rear Safety Deflector Replacement

Apply multipurpose grease on the input shaft of gear case

Align splines by rotating mower driveline

Pull locking collar (A) and simultaneously push driveline onto the input shaft of gear case until locking device engages

Pull back on shield (B) to make sure that driveline is locked

Attach PTO driveline shield chain (C) to a fixed point on mower

Install rubber if equipped safety (A) deflector to the inside of the mower mainframe using provided hardware

Tighten all mounting hardware after deflector installation

Sign off on the PTO Driveline and Rear Safety Deflector Replacement

Run this procedure

Mower to Tractor with Quick Coupler Hitch Maintenance

Place draft control lever fully forward to the position marked "OFF" (A) for no draft sensing.

Pull up on quick coupler latch handles (B).

Lower hitch by pulling hitch control lever (C) until quick coupler hooks are lower than mower hitch pins.

Back up the tractor to the mower hitch.

Raise hitch high enough to engage mower hitch pins in hooks.

Engage tractor park brake and/or place transmission in "Park".

Shut off engine and remove ignition key.

Push quick coupler latch handles (B) down to lock mower to quick coupler hitch.

Attach PTO driveline (See procedures in this section).

Run this procedure

Knives Inspection

Warning: Ensure the mower is turned off and unplugged before starting the inspection

Knives are undamaged

Knives are not worn

Measure the knife hole for the securing ring

Knife hole for the securing ring is not worn by more than 3.2 mm

Sign off on the knives inspection

Run this procedure

Knives Replacement

Remove mounting bolt (A)

Take knife out of ring (D)

Inspect the mounting hardware

Install new knives

Replace worn or damaged fasteners

Have the lock nuts of mounting clip bolt been removed five times?

DO NOT reuse lock nuts of mounting clip bolt if they have been removed five times.

Sign off on the knives replacement

Run this procedure

Cutting Height Maintenance

Warning: Ensure the mower is turned off before starting the procedure

Is the mower turned off?

The mower has a cutting height range 13-127 mm (0.5 to 5 in). The desired cutting height of the knives is set by pivoting the gauge roller (A). Pivoting the roller upward lowers the knives and pivoting the roller downward raises the knives.

Remove the top bolt (B) from each end of the roller mounting

Loosen the lower bolt (C) in each end

Position the roller for desired cutting height according to chart

Sign off on the cutting height maintenance

Run this procedure
