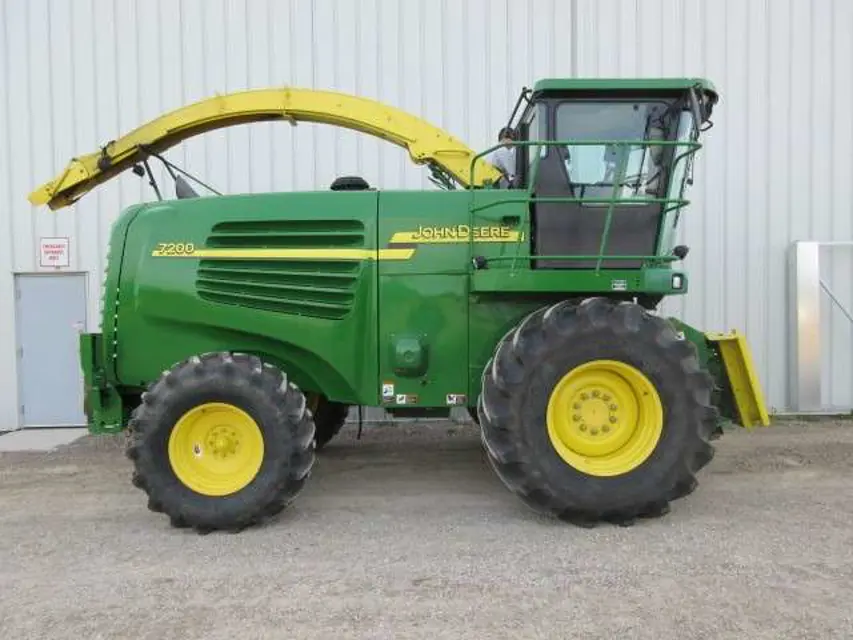

John Deere Forage Harvesters 7200

Includes all work shown under "Every 10 Operating Hours"

Tighten rear wheel attaching bolts to 260 N.m (185 lb-ft)-Standard axle

Tighten rear wheel attaching bolts to 550 N.m (400 lb-ft)-Heavy duty and powered axle

Tighten steering cylinder attaching screws to 240 N-m (170 lb-ft)

Drain engine oil and fill crankcase with fresh oil

Check specific gravity of battery electrolyte

If necessary, charge battery and/or top up with distilled water

Includes all work shown under "Every 10 Operating Hours"

Drain hydraulic oil from oil reservoir and refill system with fresh oil

Change hydraulic oil filter-3-Speed transmission

Change transmission and hydraulic oil filters-ProDrive transmission

Change grease of gear transmission (feed rolls). Thoroughly clean inside of gear transmission prior to refilling

Change IVLOC intake and return filter

Clean mechanical fuel transfer pump

Replace coolant conditioner filter

Check and correct engine oil level

Check and correct coolant level

Inspect intake air piping and intercooler

Sign off on the daily maintenance

Check all hose connections for leaks or deterioration

Adjust valves, injectors and engine brakes

Sign off on the 3000 Hourly Maintenance

Retighten front wheel attaching nuts to 550 N-m (400 Ib-ft)

Retighten rear wheel attaching bolts to 260 N.m (185 lb-ft)-Standard axle

Retighten rear wheel attaching bolts to 550 N.m (400 lb-ft)-Heavy duty and powered axle

Retighten final drive attaching screws

Retighten 3-speed or ProDrive transmission attaching screws

Retighten front axle attaching screws
