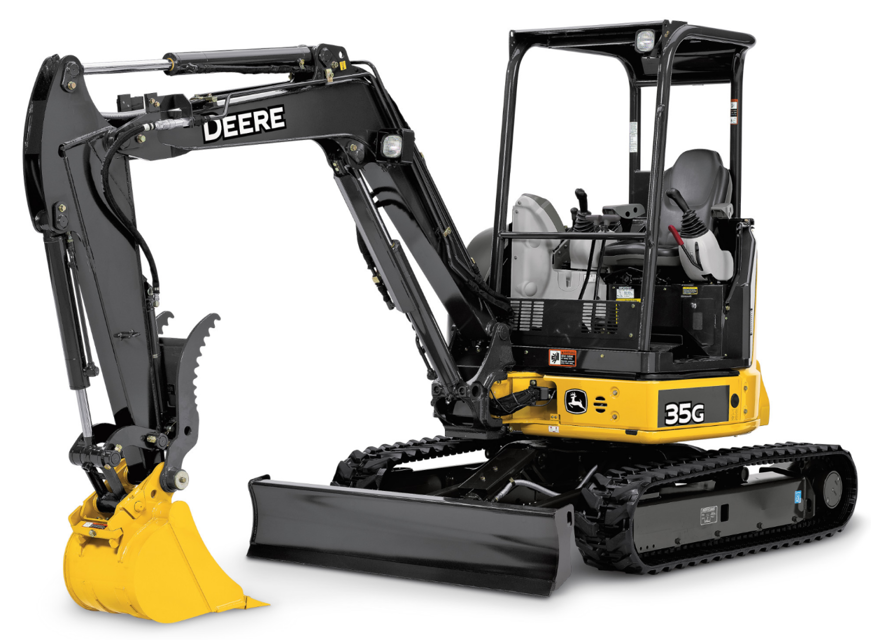

John Deere Excavator 35G

Clean radiator core and oil cooler

Check and clean engine air cleaner dust unloader valve

Open engine access door to access air cleaner dust unloader valve

Squeeze air cleaner dust unloader valve to remove dust from the air cleaner

Check condition of dust unloader valve. Replace if hardened or damaged

Replace engine air filter elements

Open engine access door to access engine air filter

Release engine air filter cover latches to unlock cover

Warning: Use appropriate PPE and follow safety guidelines

Spring pin (1) driven out with hammer and drift

New tooth positioned over tooth shank

Spring pin fully driven into hole

Sign off on the bucket teeth replacement

Open right rear service door to access primary fuel filter and water separator assembly (1)

Turn key switch to ON position for 10-15 seconds. The electric fuel solenoid pump will start to bleed air

Wait 30 seconds before trying to start the engine

Fuel supply system checked for fuel leaks

Sign off on the fuel system maintenance

Pin (1) removed by rotating counterclockwise 180° using a ratchet and socket

Pin and rubber locks (2) inspected for damage

Pin and rubber locks (2) replaced if necessary

New tooth positioned over the tooth shank

Pin installed by rotating clockwise 180°

Sign off on the Bucket Teeth-TK Series Replacement

Drain and refill engine oil and replace filter

Park machine on a level surface and stop engine

Remove drain valve (1) from engine oil pan. Allow oil to drain into a container. Dispose of waste oil properly

Turn engine oil filter (3) counterclockwise to remove. Clean mounting surface on base

Apply thin film of oil to rubber gasket of new filter

Install new filter. Turn filter clockwise by hand until gasket touches mounting surface
