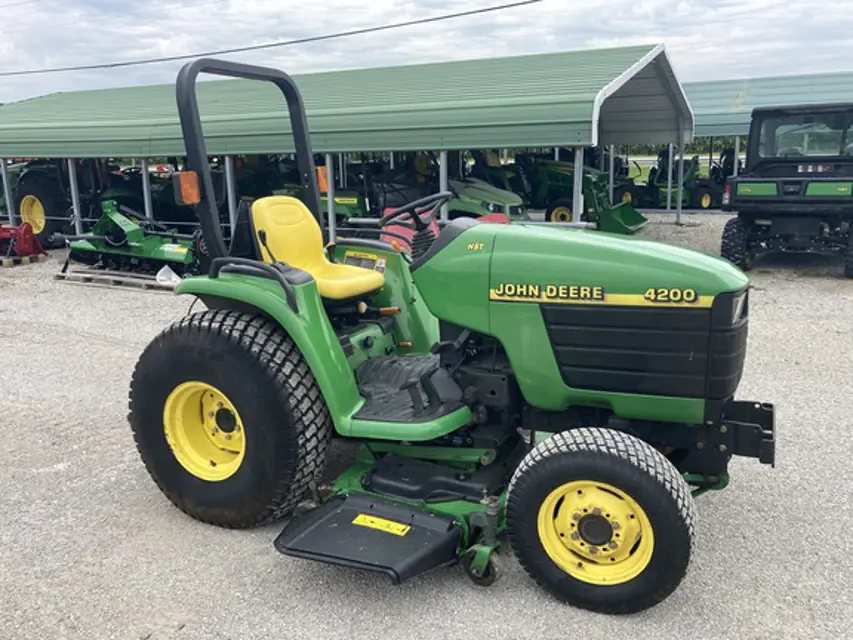

John Deere Compact Utility Tractor 4200

Air cleaner canister cover removed

Primary element replaced with a new one

Air cleaner canister cover installed with rubber dust unloading valve pointing downward

Instruction molded into canister cover checked for proper installation

Reset button on air restriction indicator pushed

Both engine side panels removed

Radiator cap opened to first stop to release pressure

Radiator petcock opened and coolant drained into a pan

Drain pan positioned under engine block drain plug

Park machine safely and allow engine to cool

Remove side panel from right side of engine

Position drain pan under fuel filter sediment bowl to catch fuel spillage

Turn locking collar counterclockwise to remove bowl

Remove and discard the fuel filter

Remove and retain the plastic ring and spring from sediment bowl

Clean bowl, plastic ring, and spring

Remove dipstick (A). Wipe with a clean cloth

Check oil level on dipstick; oil level should be between levels (B) and (C) on dipstick

If oil level is low: Remove side panel on right side of engine, Remove oil fill cap (D), Add proper engine oil until oil level is within operating range on dipstick. Do not overfill

If oil is above level (B) on the dipstick, drain to proper level

Rinse hood and entire machine with clean water to remove dirt and dust that may scratch the surface

Wash surface with clean water and a mild liquid automotive washing soap

Dry thoroughly to avoid water spots

Wax the surface with a liquid automotive wax. Use products that specifically say “contains no abrasives

Buff applied wax by hand using a clean, soft cloth

Sign off on the plastic surfaces maintenance
